Westerham Vertical Bike Rack

Description

Specifications

Downloads

Description

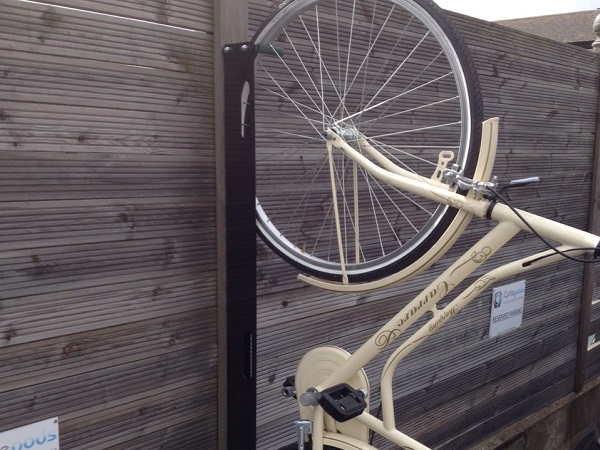

A cost effective vertical bike rack that offers “3 point locking” options. Easy install, easy to use!

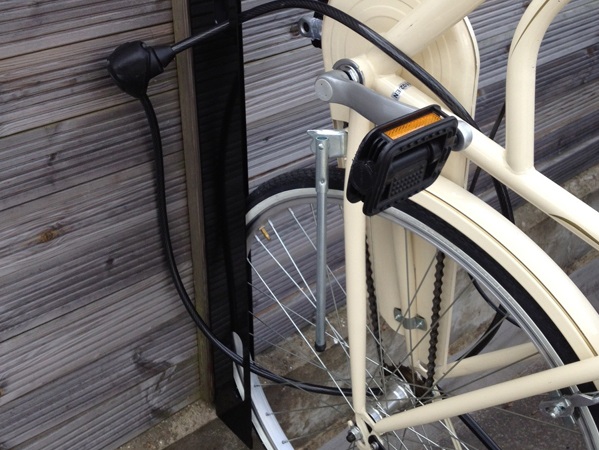

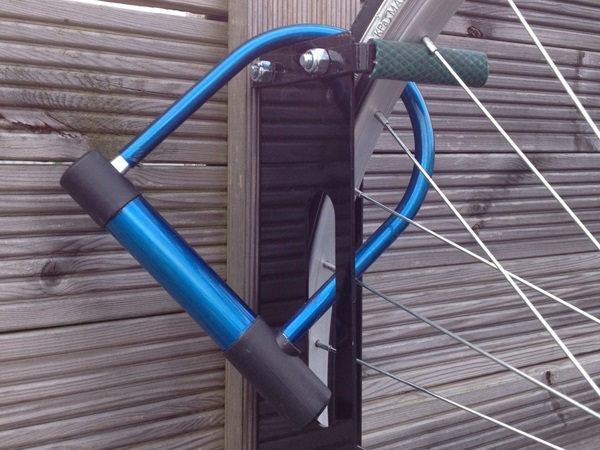

The Westerham is designed to be used with the cyclists own D-lock or Cable lock. It secures the frame and both wheels to the rack, depending on lock used.

If you would like more information or a quote use the enquiry form below.

Or email us at enquiries@bsfg.co.uk

Or call on 01959 546046

We now have a dedicated team of specialist to assist you with any large cycle infrastructure and active travel projects.

Looking to specify this product for your project? Find it on NBS

BIM models are also available. Find them here

Specifications

Material: Mild steel

Finishes:

Zinc oxide primed and polyester powder coated (indoor use only)
Galvanised (suitable for outdoor use)
Galvanised and powder coated (suitable for outdoor use)

Colour: Black (Other colours available on request)

Additional Information: Recommend indoor use only for the standard black powder coated version. Galvanised and galvanised with black powder coating options are suitable for outdoor use.

Dimensions

Dimensions: H1500 x D112 x W112 mm
Wall thickness on wall channel: 5mm
Wall thickness on wheel clip: 4mm
350mm centre line gap between each track
Weight: 4kg

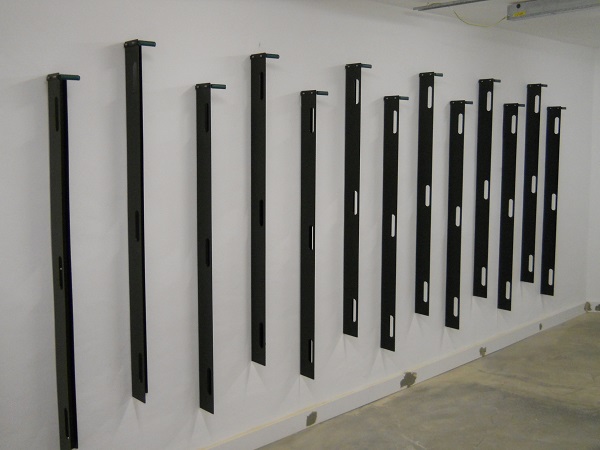

Installation

From wall: 300mm from side wall
Normal height: 500mm centres
Staggered height: 350mm centres

Height requirements:

Normal height: 2000mm
Staggered height: 2400mm

Fastenings: M8 75mm long shield anchor bolts or self tapping bolts, for concrete or brick walls, which can supplied at extra cost. The rack should be fixed via the three holes in the back face of the track.
