Description
The highest selling two tier system in Europe!

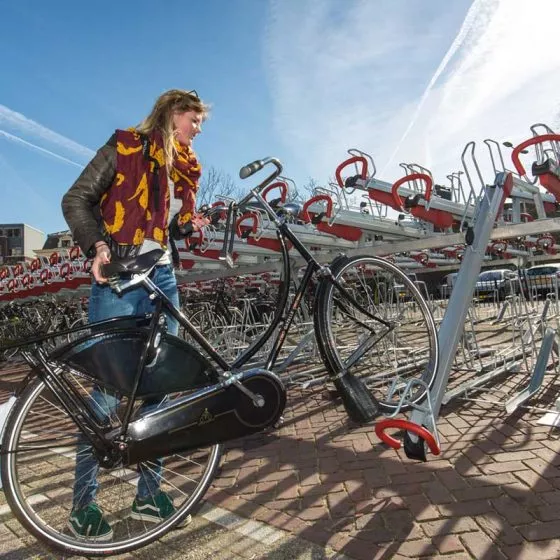

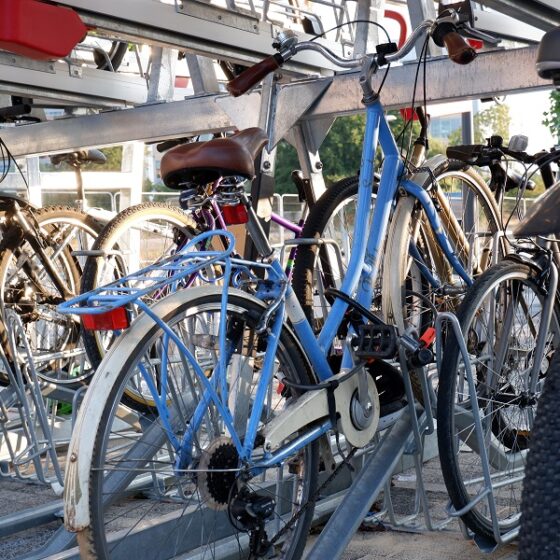

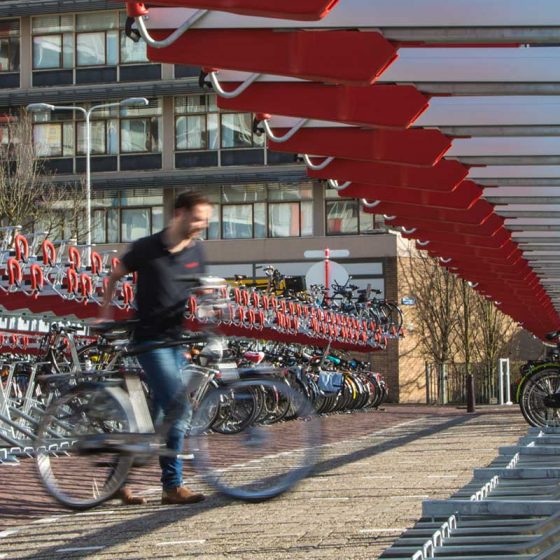

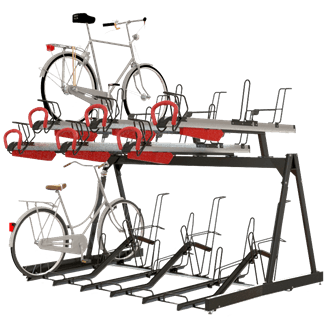

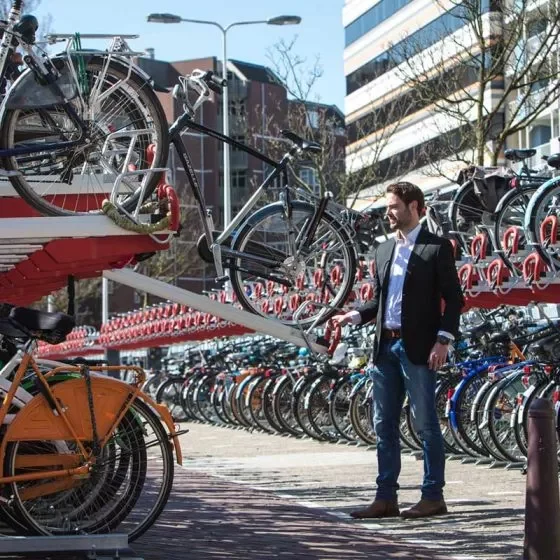

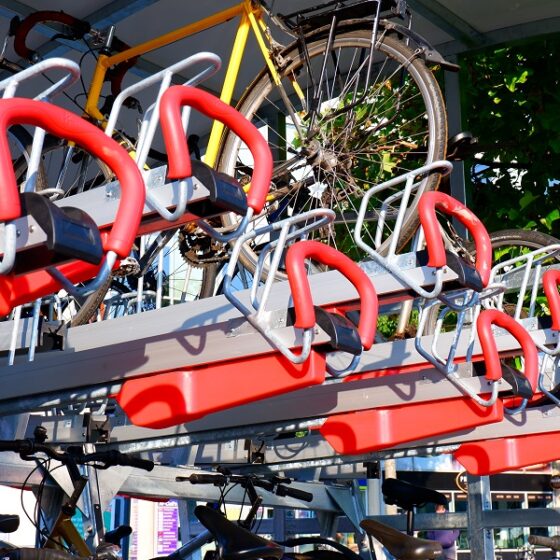

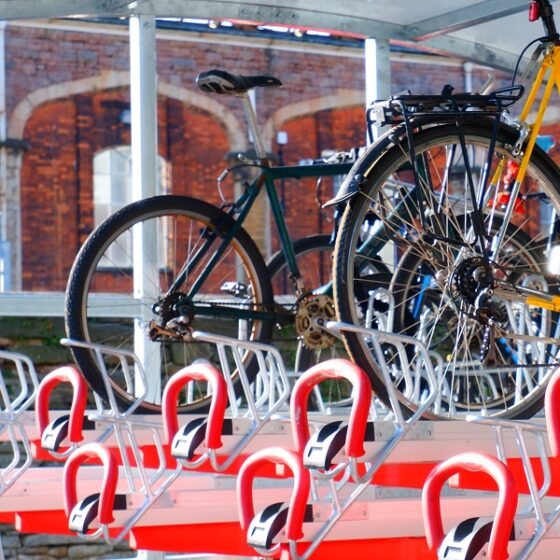

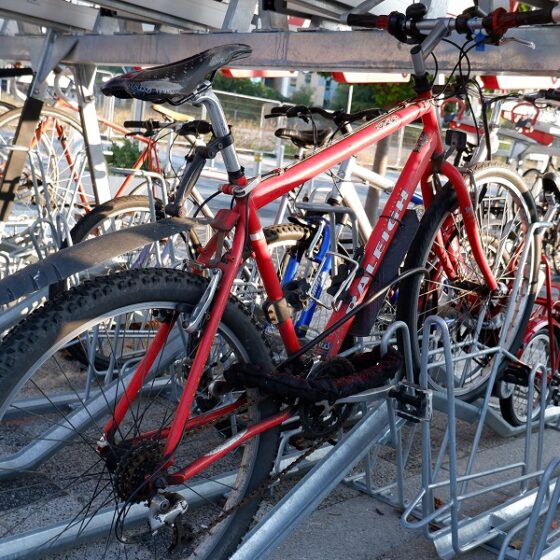

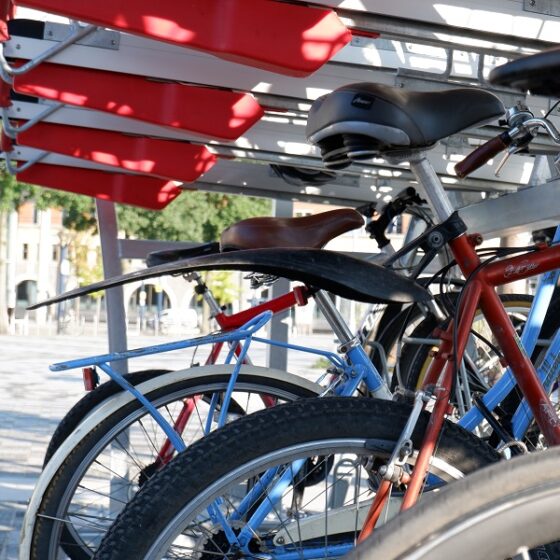

Easylift Premium is a highly convenient gas-assisted two level bicycle parking system. The lifting system ensures that a bicycle can be parked on the top level effortlessly. The end of the light-weight aluminium upper track rests on the ground so that the bicycle can simply be wheeled onto it and hardly has to be lifted at all. The two levels mean that the parking capacity is doubled!
- The most successful two tier cycle parking system with 65,000 installed at Dutch stations alone over last 4 years.
- Eight thousand spaces installed in UK over last 4 years.

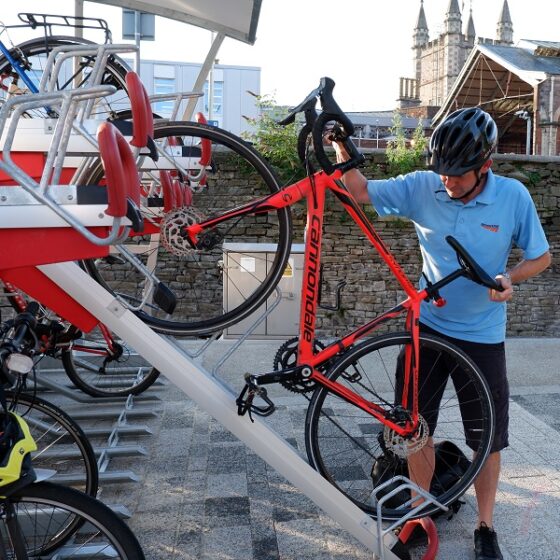

- Easy to use: Light aluminium upper arm. Upper arm on casters for easy glide action. Upper arm reaches to the floor for ease of loading bike.
- European manufacture for quality assurance.
- Welded and bolted construction. Security bolts give additional security.
- Gas assist action: Dampers stop upper arm from falling down uncontrolled. Lifts loaded upper arm with little effort.
Core Features
- Versatile – Can be configured to meet the number of spaces you require
- Compliant – Gas assisted system that requires little effort from the cyclist

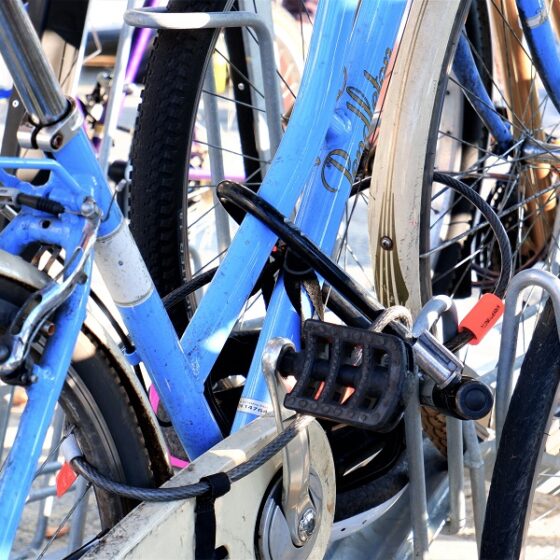

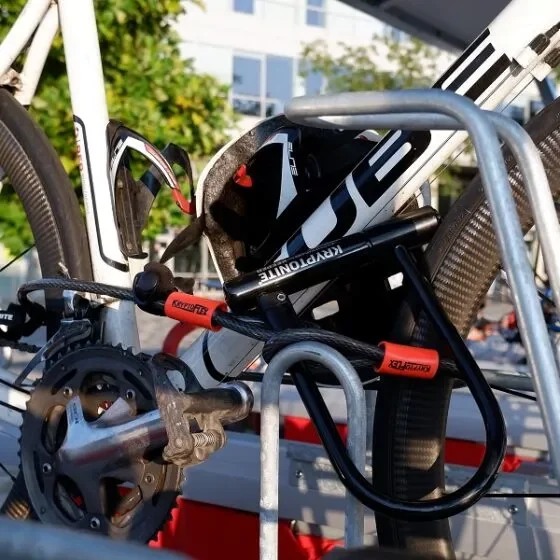

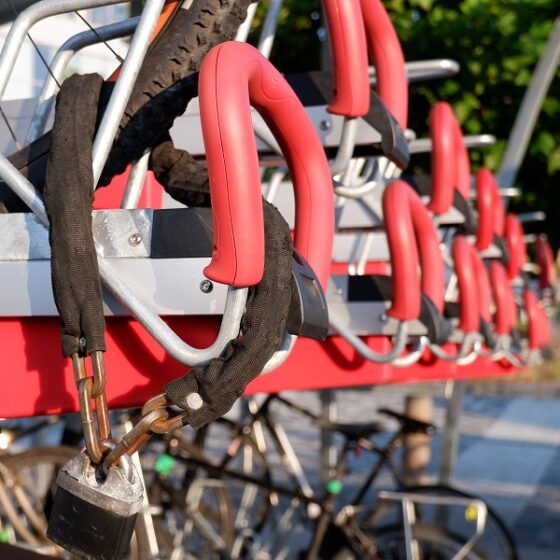

- Secure – Secure at the front and/or rear of the bicycle with chain or D-lock
- Easy to use – Designed to be easy to use and operate
If you would like more information or a quote use the enquiry form below.
Or email us at enquiries@bsfg.co.uk
Or call on 01959 546046
We now have a dedicated team of specialist to assist you with any large cycle infrastructure and active travel projects.
Looking to specify this product for your project? Find it on NBS
BIM models are also available. Find them here
Specification

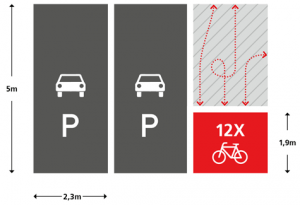

- Depth of unit: 1900mm.
- Minimum manoeuvring space: 2100mm.
- Track material: Aluminium.
- Galvanised supports and cross beams: Finished to BS ENISOI1461.

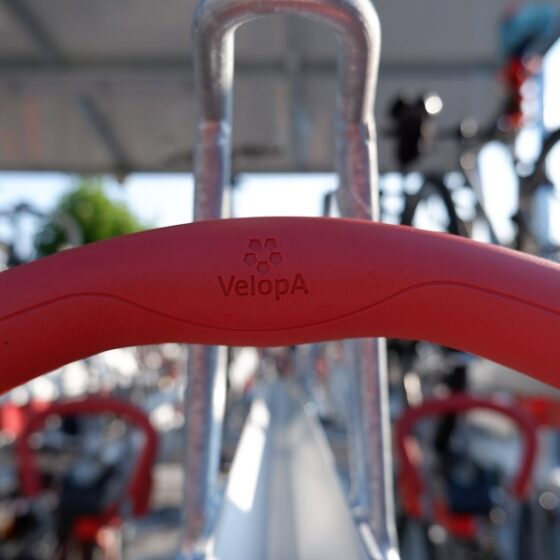

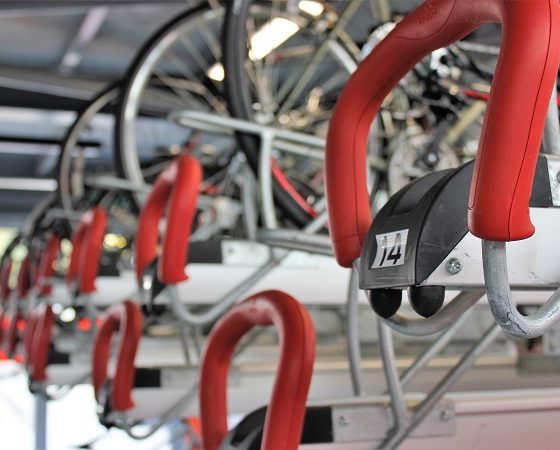

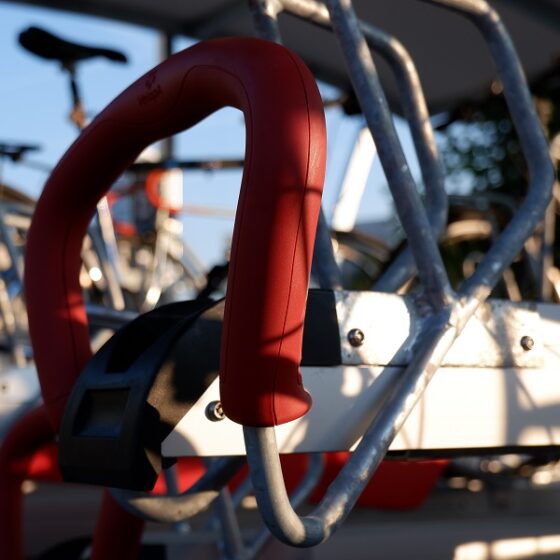

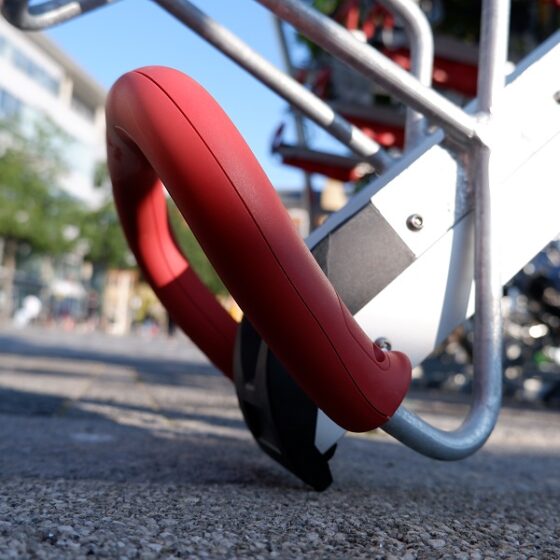

- Handle Material: Red Polymer handle with steel support.
- Lowering Mechanism: Gas assisted.
- Centre to centre per bike: 375mm (standard) – 400mm – 500mm.
- Surface mounted: Free standing, no bolting down into ground required.
- Configurations:
- Single Sided: 4-8-12-16.
- Double Sided: 8-16-24-32.
- Units can be bolted onto each other to form a continuous line to desired length.
- Modular construction: Can be extended upon.
- Security: 3 individual locking points per rack. Warranty required for Two tier: 5 years.
- Overall Clearance: Minimum Height required: 2600mm.
- Frame Finish:
- FIETSPARKEUR achieved in 400mm centres version.

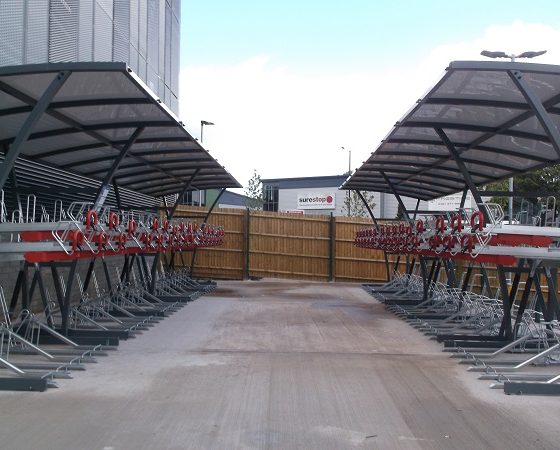

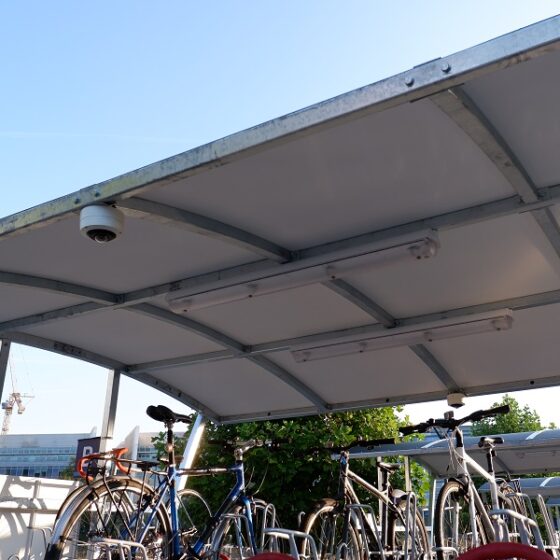

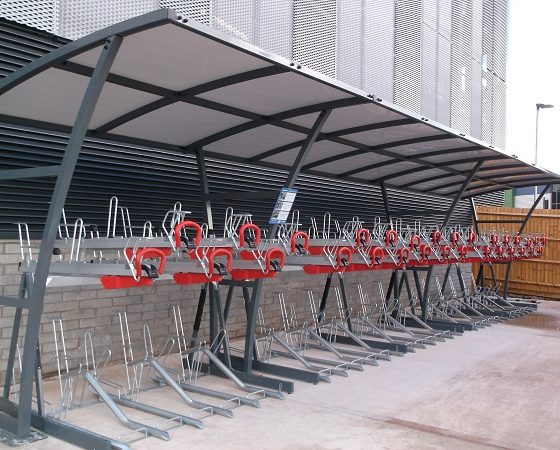

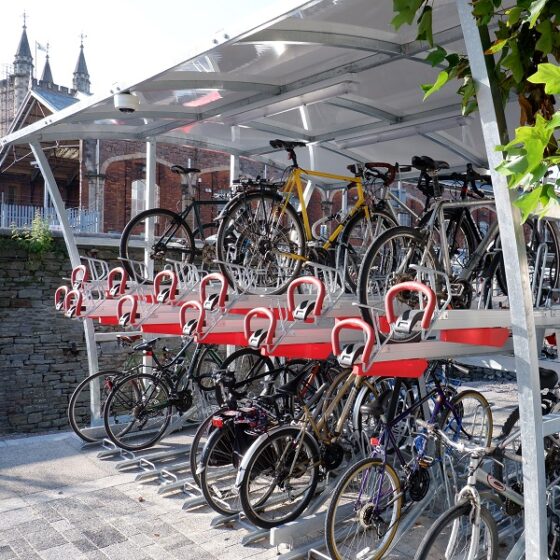

- Various shelter options available for all products.
Certification
- Universal Design – Expert Favourite 2015
- Universal Design – Consumer Favourite 2015
- Good Industrial Design
- Reddot Design Award
- Fietsparkeur
Video

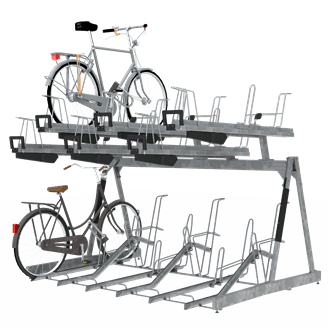

| FEATURES | Easylift Premium | CapaCITY |
| User-friendly | ***** | **** |
| unique damping system | ✔ | ✘ |
| low sill height (the bicycle hardly has to be lifted at all) | 31cm | 37cm |
| controlled “hands-free” descent | ✔ | ✘ |
| locking system for the bicycle | ✔ | ✔ |
| ergonomically designed, non-slip handgrips | ✔ | ✔ |
| colour markers, marker posts or identification numbers | ✔ | ✔ |
| drainage system | ✔ | ✔ |
| Integrated detection system possible | ✔ | ✔ |
| securing loop | ✔ | ✔ |
| extra locking loop (International Connection Facility (ICF)) | ✔ | ✔ |
| Centre to centre distance | 37.5 and 40cm | 37.5 and 40cm |
