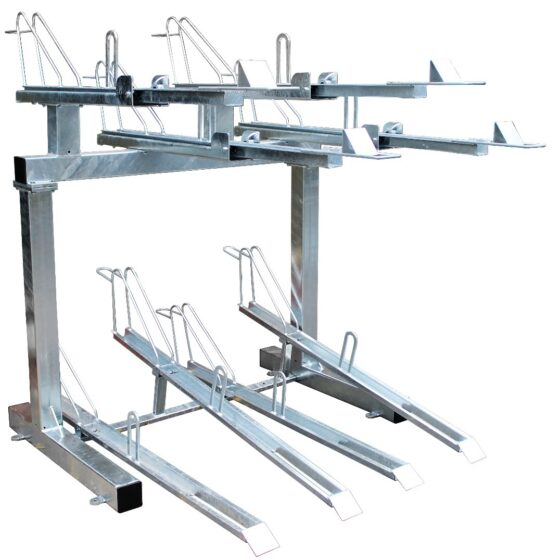

• Mild steel construction with galvanised finish.
• Each space has an individual locking loop.
• Upper racks drops to 380mm from the ground.
• 375mm centres rack spacing.
• 1 year warranty as standard.
• Minimum height clearance required – 2.5m

Installation

• Fixes directly to an existing concrete slab, or typical concrete pad required – 1400 x 300 x 150mm deep per leg.
• Each foot (4 of) requires M16 x 100mm ground anchor bolt.

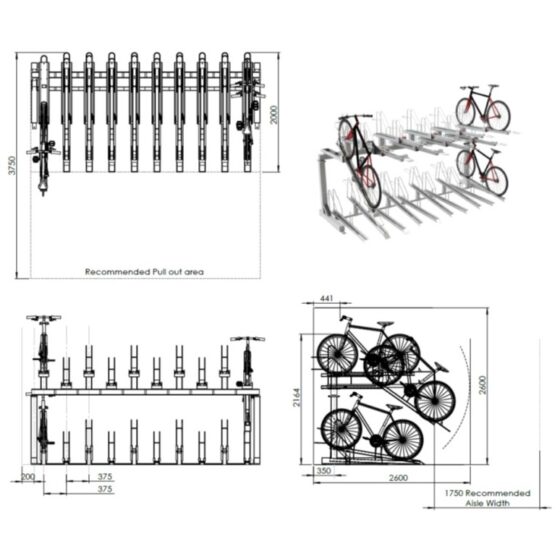

Dimensions

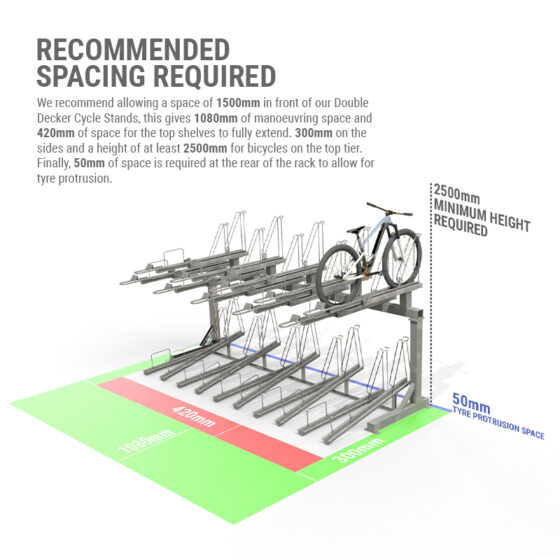

We recommend allowing a space of 1500mm in front of our Double Decker Cycle Stands, this gives 1080mm of manoeuvring space and 420mm of space for the top shelved to fully extend. 300mm on the sides and a height of at least 2500mm for bicycles on the top tier. Finally, 50mm of space is required at the rear of the rack to allow for tyre protrusion.
