Double Brighton Shelter
Description
Specifications
Certification
Downloads
Description

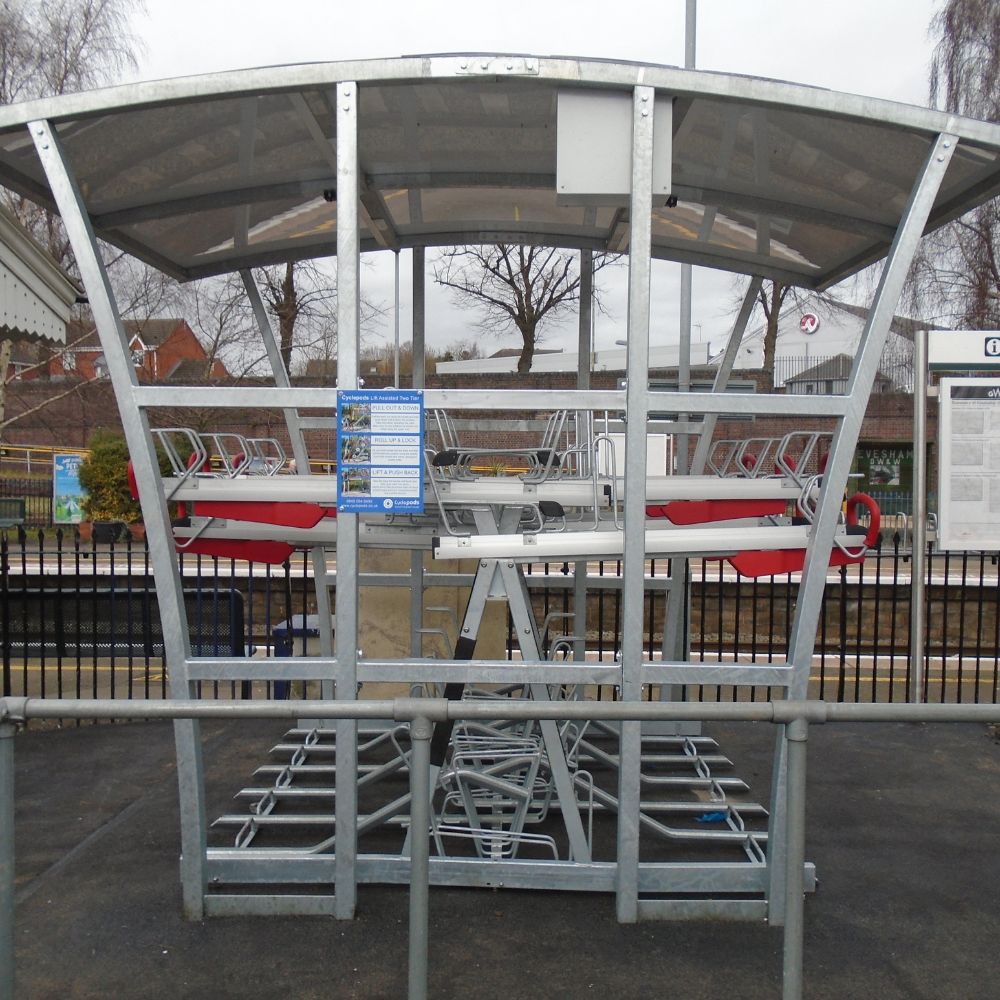

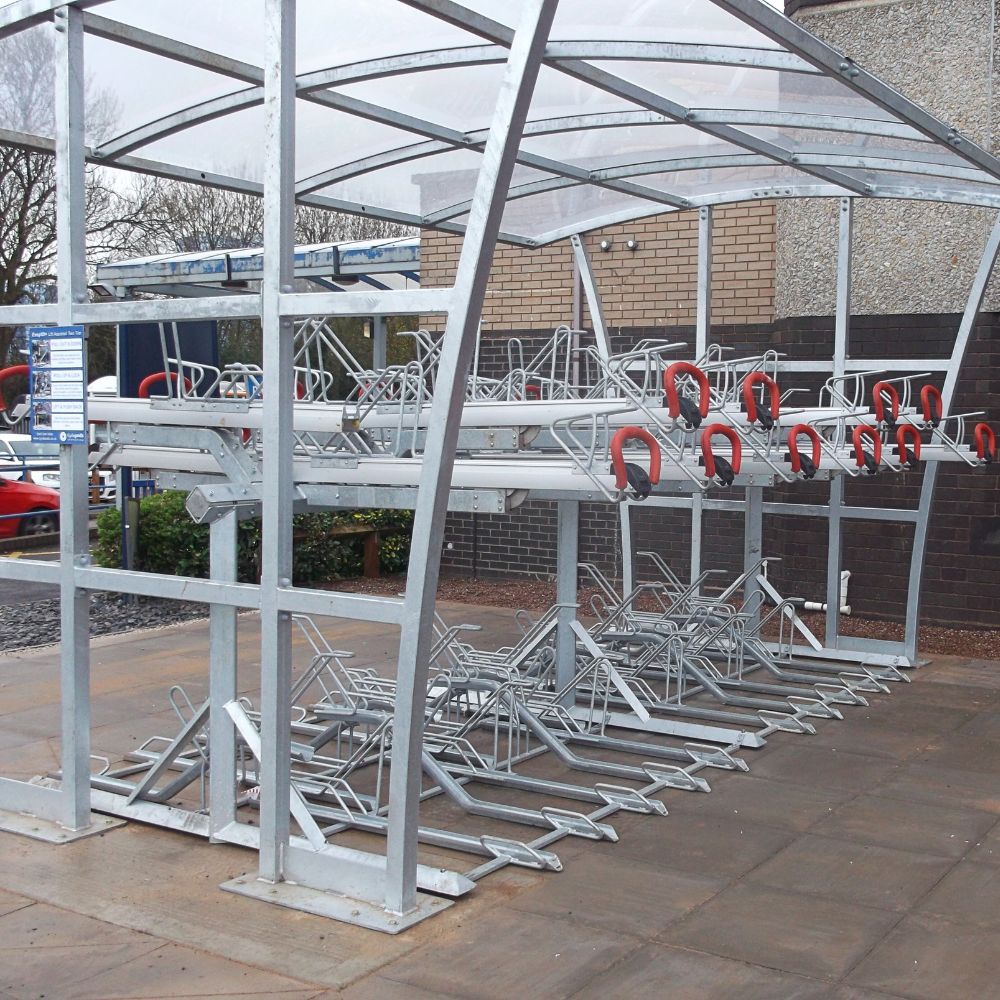

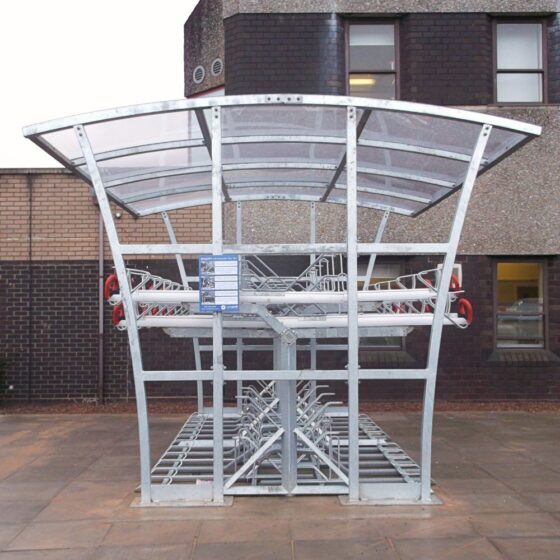

The Double Brighton two tier cycle shelter is a stylish and versatile two tier shelter; units can be added to form a larger shelter. The design is modular and therefore can easily adapted to shelter multiple bikes in multiple bays.
The Brighton shelter was designed to perfectly protect our Easylift Two Tier bike rack systems from the elements.
- Fully modular system which can be extended to unlimited lengths.
- Single or double width options available.
- Robust and durable materials used. 4mm wall thick box section.
- Independently structurally engineered to ensure safe loadings throughout Europe.
- Double layer roof system provides low maintenance on sky facing and light reflecting on underside (option).
- Surface or root fixings options.
- Integral guttering and LED lighting optional.
- Hollow construction allows power and CCTV cable to run within shelter legs to underside of roof.
Specifications
- Shelter manufactured from hot dipped steel Galvanised 70 x 70 box section to BSEN ISO1461
- Standard Transparent UV PET G 4mm roof or double layer Alupanel. Black to up side, white to downside.
- Aluminium fixing straps
- All fixings to be galvanised or aluminium.
- Plastic coloured end caps.
- Full round welds.
- Nyloc nuts are used for safety
- Angled roof
- Optional powder coating
- Optional guttering
- Standard 5 metre version stores 24 bikes/48 bikes using our Easylift Two tier racks. Extensions available up to any length.

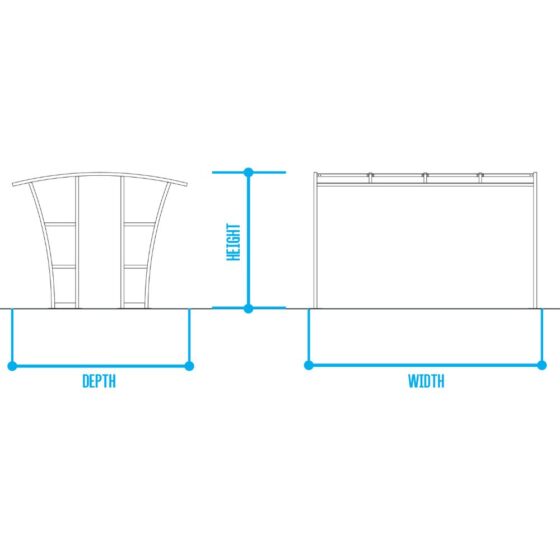

Dimensions
- Dimensions for standard shelter – H:3081mm x W: 5230mm x D: 3925mm
- to accommodate more bikes please contact us for more information.
Finish:
- Galvanised as standard.
- Powder coating available.
Ground fixing options:
- Base plate fixing.
- Submerged fixing.
Certification
- BREEAM compliant
- ENE8 Code for Sustainable Homes Compliant
Downloads
