Description

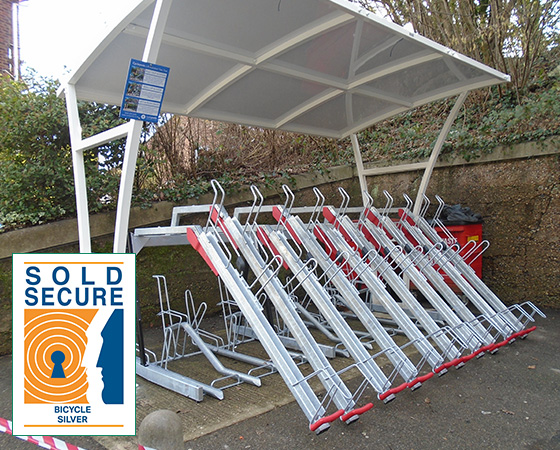

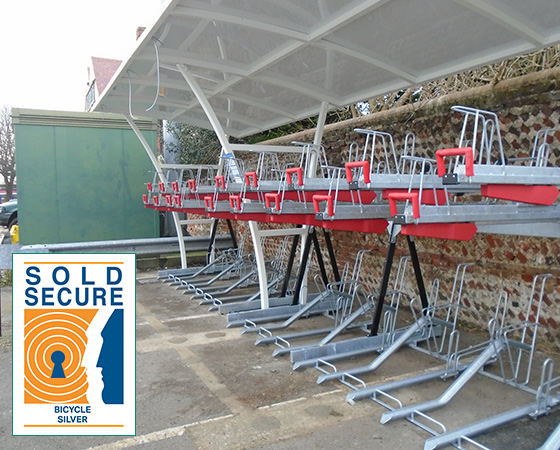

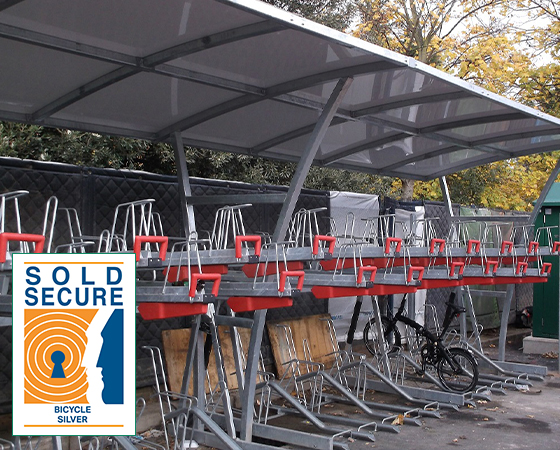

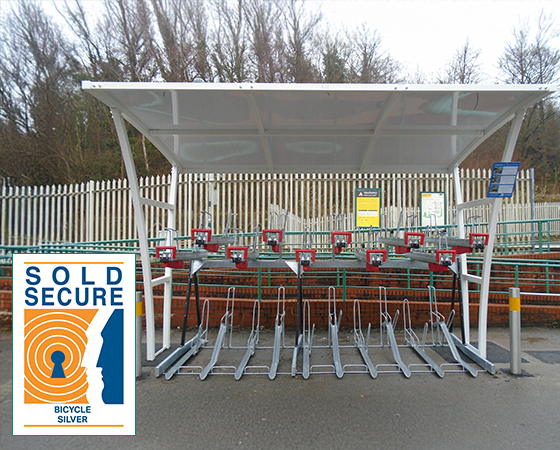

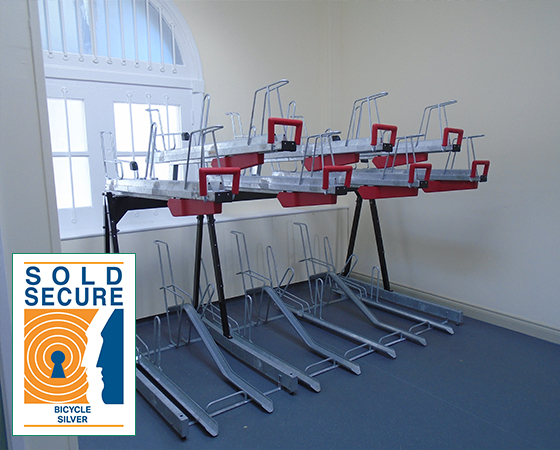

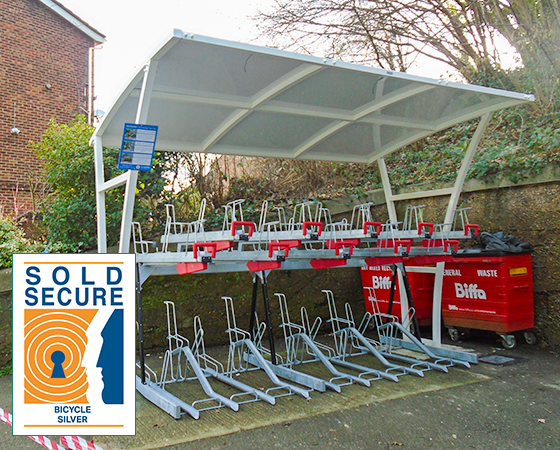

The CapaCITY two tier is a highly convenient gas assisted two-level bicycle parking system. The lifting system ensures that a bicycle can be parked on the top level effortlessly.
The two levels mean that the parking capacity is doubled!
- Easy to use: Galvanised steel upper arm Upper arm on casters for easy glide action.
- Upper arm reaches to the floor for ease of loading bike.
- European manufacture for quality assurance.
- Welded and bolted construction. Security bolts give additional security.
- Gas assist action: Dampers stop upper arm from falling down uncontrolled.
- Lifts loaded upper arm with little effort.
Core Features
Accreditation – SoldSecure Silver
Versatile – Can be configured to meet the number of spaces you require
Compliant – Gas assisted system that requires little effort from the cyclist
Secure – Secure at the front and/or rear of the bicycle with chain or D-lock
Easy to use – Designed to be easy to use and operate
Specification
- Depth of unit: 1900mm. Minimum manoeuvring space: 2100mm.
- Track material: Galvanised Steel.
- Galvanised supports and cross beams: Finished to BS ENISOI1461.
- Handle Material: Black Polymer handle with steel support.
- Lowering Mechanism: Gas assisted. Centre to centre per bike: 375mm (standard) – 400mm – 500mm.
- Surface mounted: Free standing, no bolting down into ground required.
- Configurations:
- Single Sided: 4-8-12-16.
- Double Sided: 8-16-24-32.
- Units can be bolted onto each other to form a continuous line to desired length.
- Modular construction: Can be extended upon.
- Security: 3 individual locking points per rack.
- Warranty required for Two tier: 5 years.
- Overall Clearance: Minimum Height required: 2600mm.
- Frame Finish: Galvanised
- Various shelter options available for all products.
Certification
- SoldSecure Silver
- Universal Design – Expert Favourite 2015
- Universal Design – Consumer Favourite 2015
- Good Industrial Design
- Reddot Design Award
Video
| FEATURES | Easylift Premium | CapaCITY |
| User-friendly | ***** | **** |
| unique damping system | ✔ | ✘ |
| low sill height (the bicycle hardly has to be lifted at all) | 31cm | 37cm |
| controlled “hands-free” descent | ✔ | ✘ |
| locking system for the bicycle | ✔ | ✔ |
| ergonomically designed, non-slip handgrips | ✔ | ✔ |
| colour markers, marker posts or identification numbers | ✔ | ✔ |
| drainage system | ✔ | ✔ |
| Integrated detection system possible | ✔ | ✔ |
| securing loop | ✔ | ✔ |
| extra locking loop (International Connection Facility (ICF)) | ✔ | ✔ |
| Centre to centre distance | 37.5 and 40cm | 37.5 and 40cm |
