Bicycle Garage LEXINGTON NEW
Description
Specification
More Details
Downloads
Description

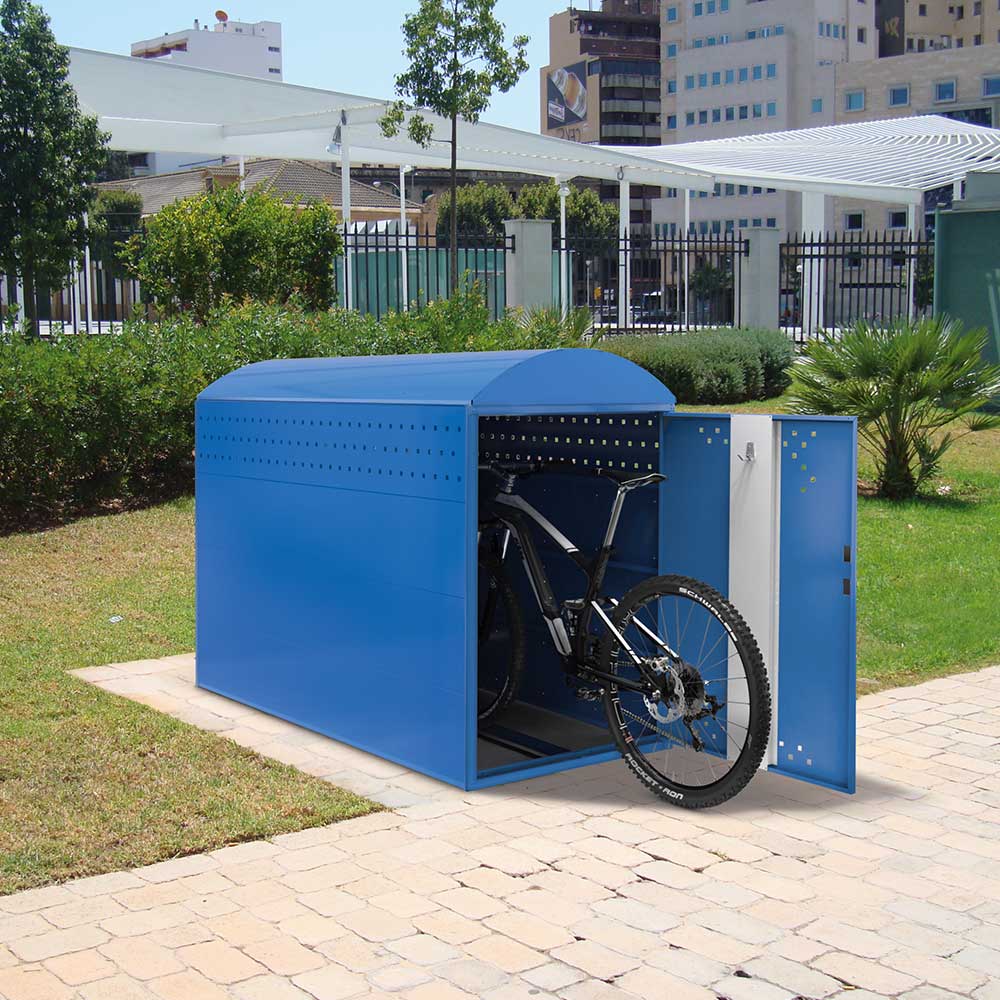

The LEXINGTON NEW bicycle box, designed as an entry-level model for hassle-free bike parking, provides reliable protection against rain, dirt, and theft. Thanks to its versatile design, it can be installed anywhere, making it suitable for both private and public open spaces. Bicycles stored in a bike box like the LEXINGTON NEW are more secure than when locked to a fence, railing, post, or tree. The robust three-point locking system further enhances security, with the door secured at multiple points similar to a safe.

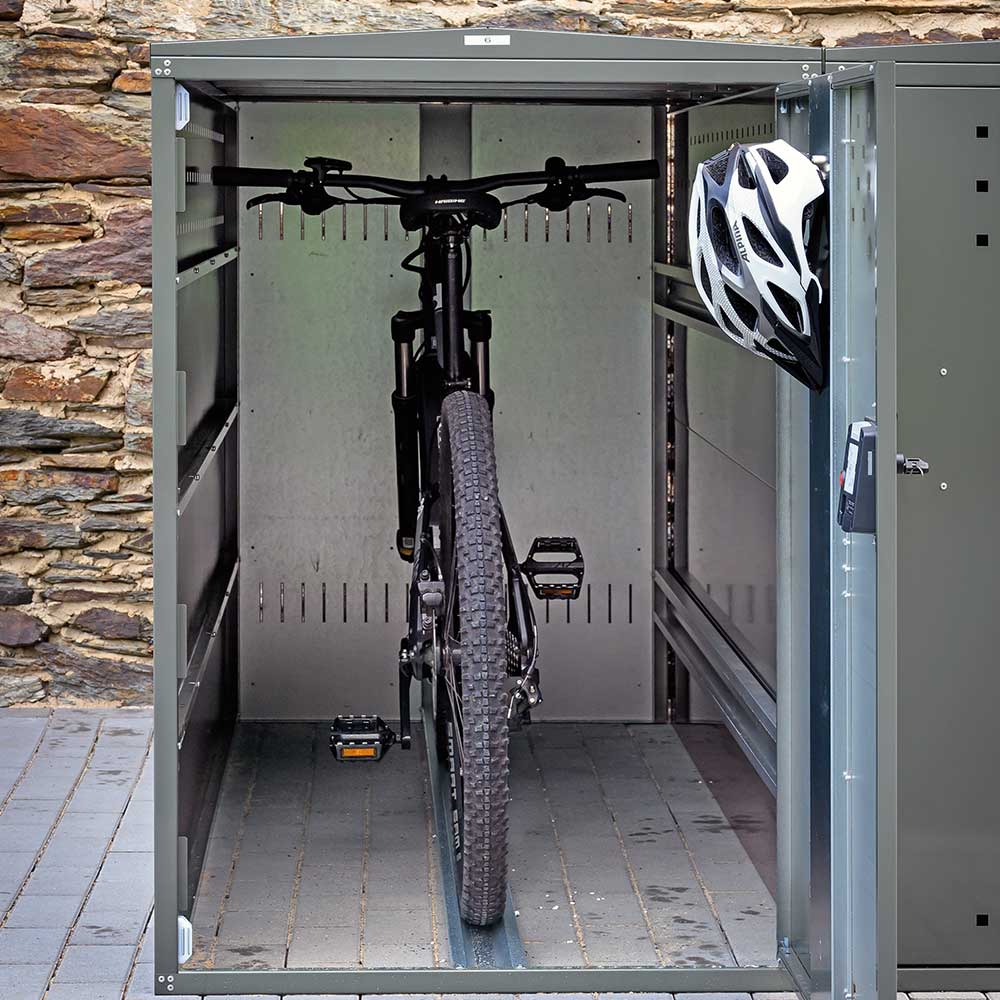

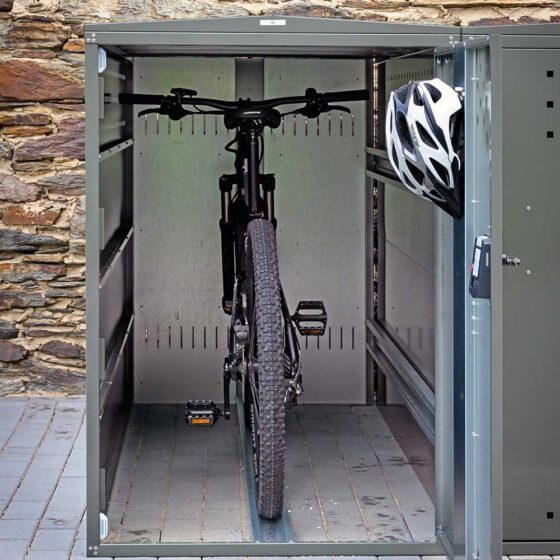

Bicycle garages such as the LEXINGTON NEW offer the advantage of storing wheeled vehicles outside the home. Heavy bicycles, especially e-bikes and pedelecs, do not need to be transported to and from the basement on a daily basis. The door clearance is suitable for all standard bicycle models, and a guide rail simplifies parking. Optionally, the bike box can be equipped with a charging station for e-bikes.
Constructed from Sendzimir-galvanized steel with a powder-coated finish in the RAL colour of your choice, the LEXINGTON NEW is well protected against weathering and corrosion over the long term. The side panels feature ventilation openings at the top to prevent condensation. Thanks to the modular design, defective components can be easily replaced, and the straightforward assembly process allows for simple self-installation.
Our ZIEGLER Tip:
An environmentally friendly and energy-efficient option for commuters is the BIKE & RIDE concept. Nationwide, BIKE & RIDE facilities are heavily subsidized. Providing high-quality bicycle garages has been shown to significantly increase the number of people cycling to train stations, city centers, and retail locations.
Specification
Construction:
• Robust steel structure made of corrosion-protected sheet steel

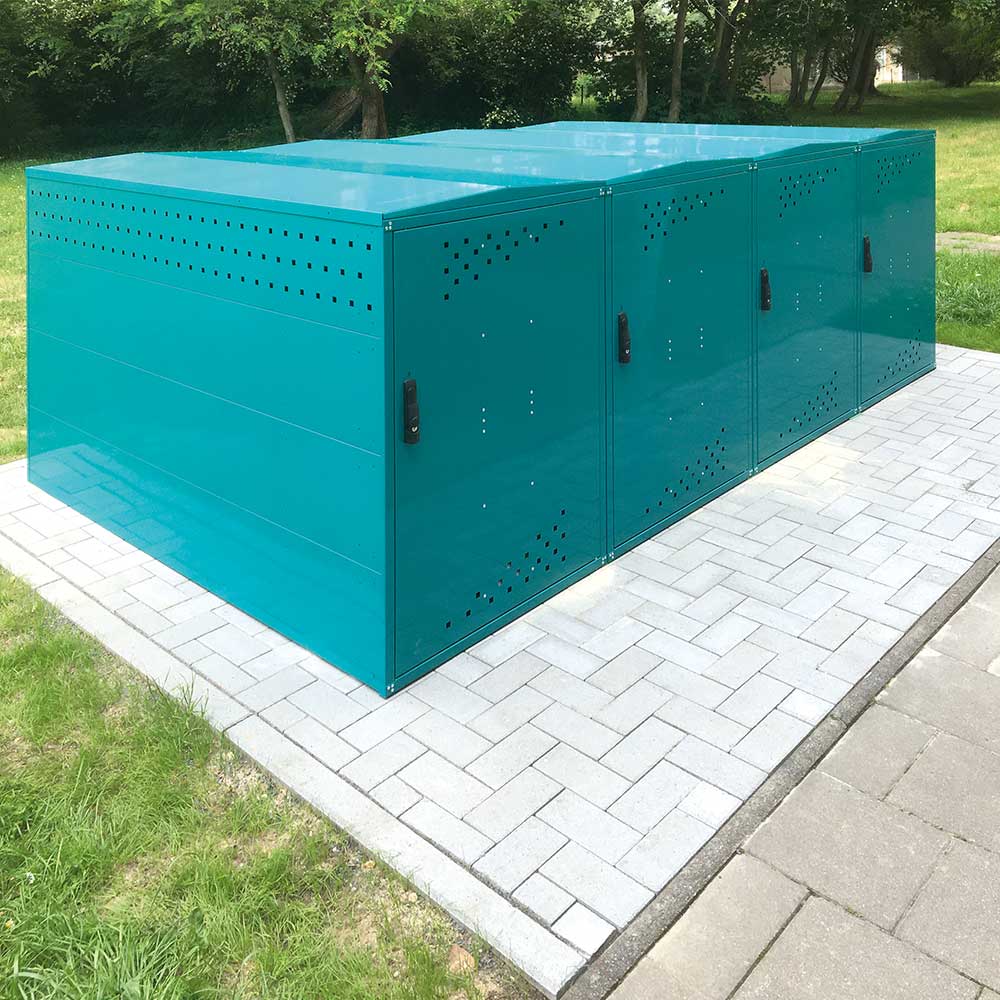

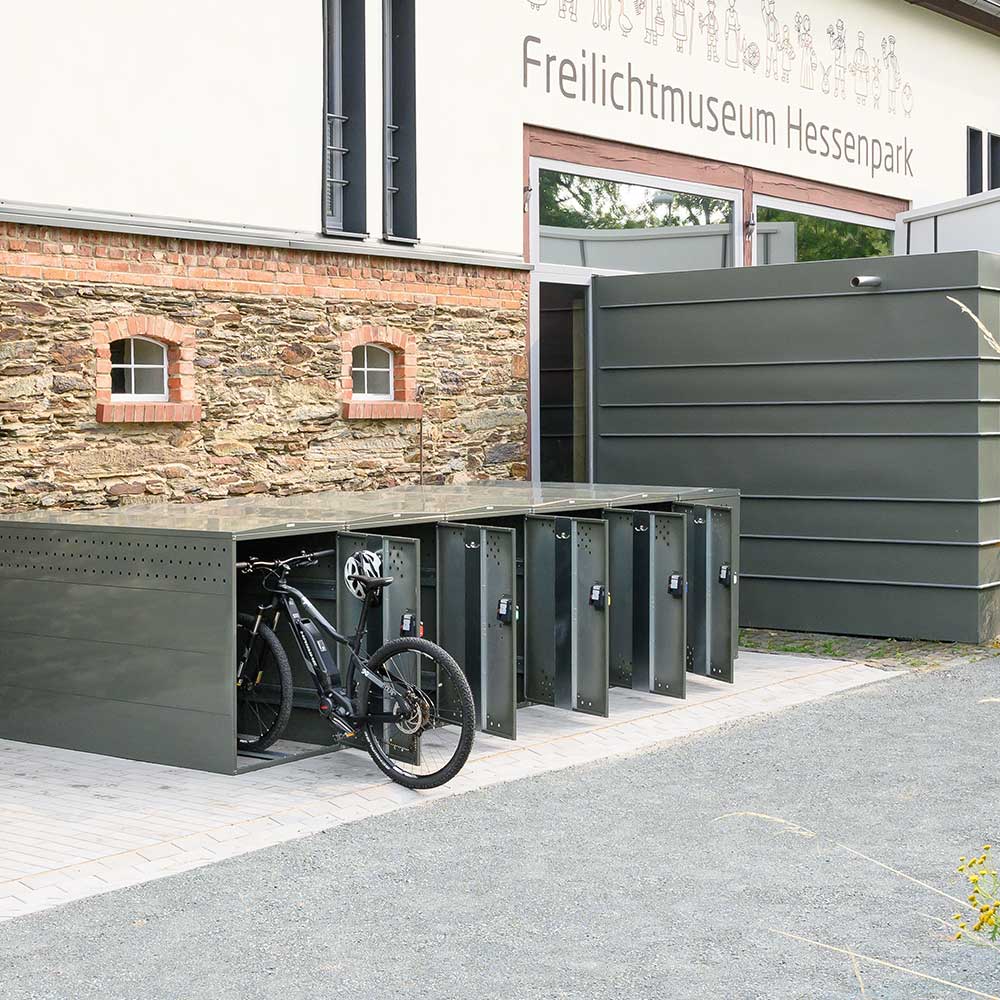

• Modular design allows easy replacement of individual components and extension into row installations of any size
• Optional e-bike charging station and locking ring for secure attachment of bicycles (see accessories)
Surface / Colour:
• All steel parts are Sendzimir-galvanized and powder-coated in the RAL color of your choice
Roof:

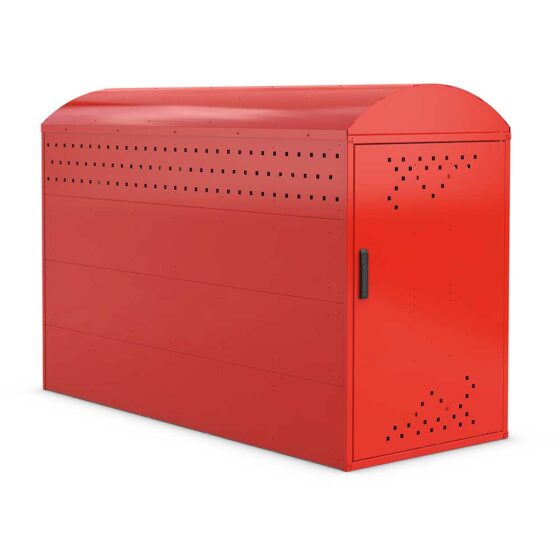

• Gable or arched roof, internally reinforced with 6 profile beams
Rear Wall:

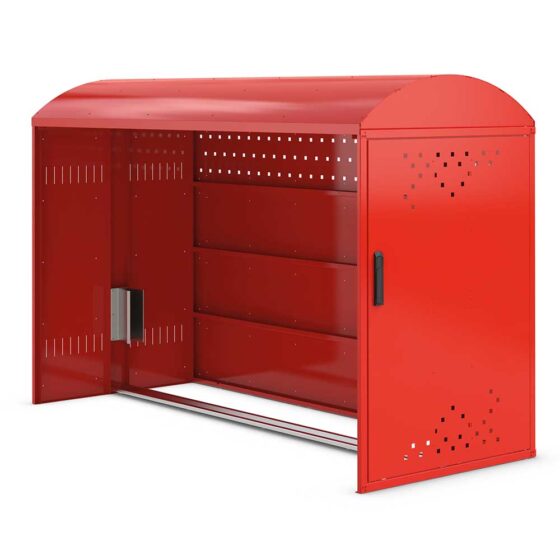

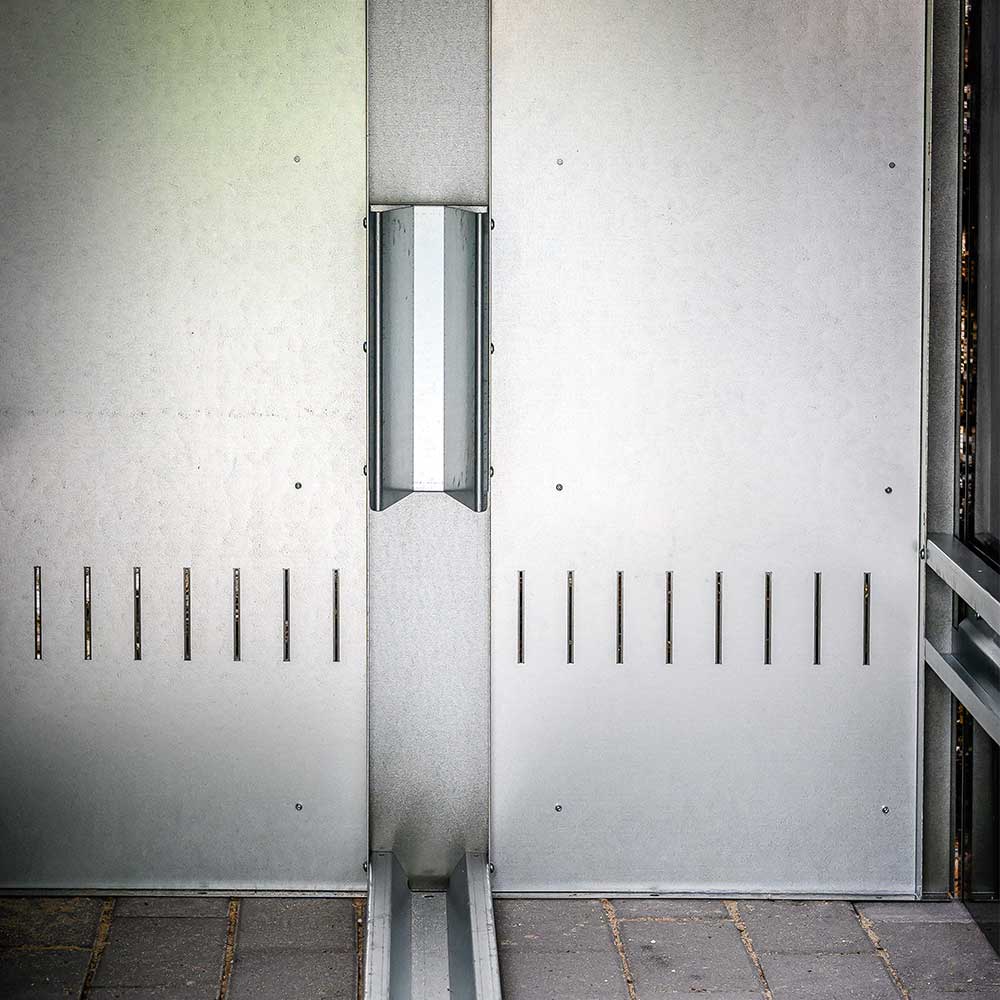

• Vertical reinforcement profile with wheel clamp
Side Panels:
• Made of 1.0 mm profiled steel panels, 4 panels per side
• Side panels feature upper ventilation openings for improved airflow (prevents condensation)
Door:
• Door frame made of 1.5 mm steel sheet

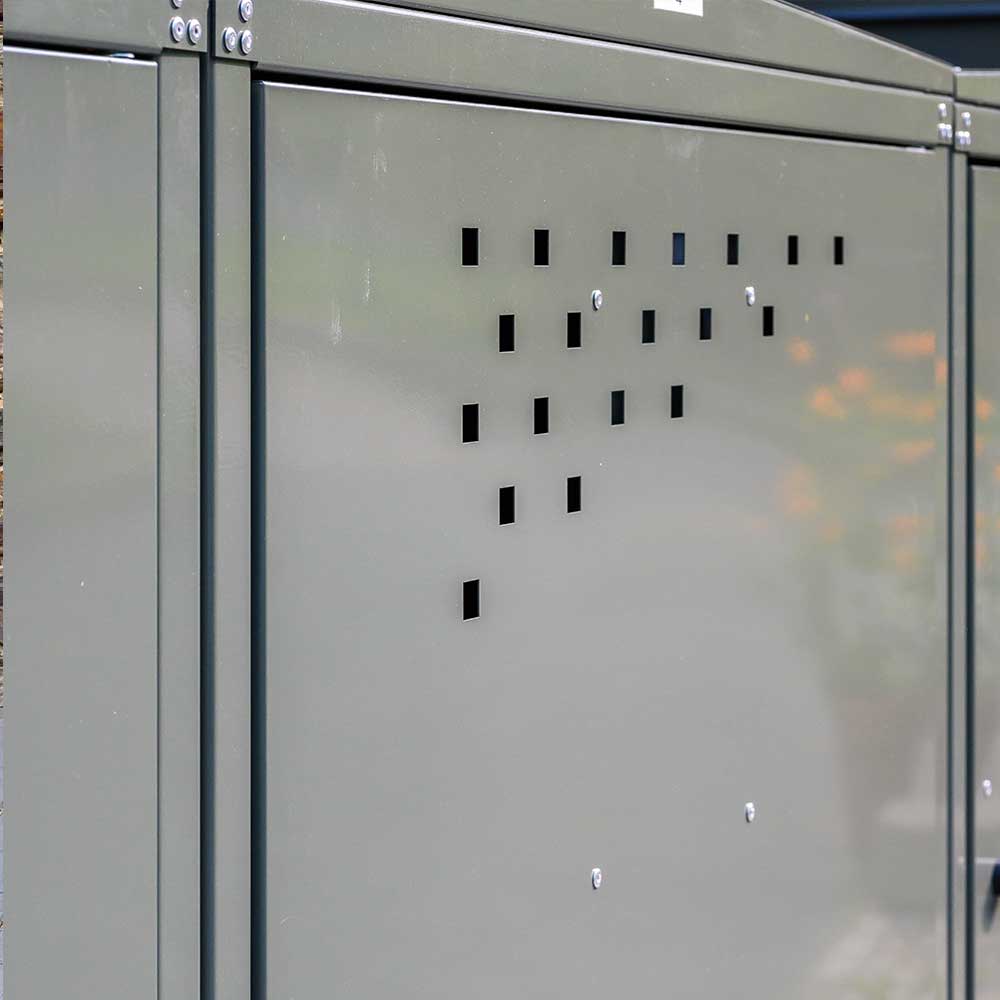

• Vertical reinforcement bar and ventilation openings at the top
• Standard door hinge: DIN right
• Labeling and DIN left hinge on request
Locking:

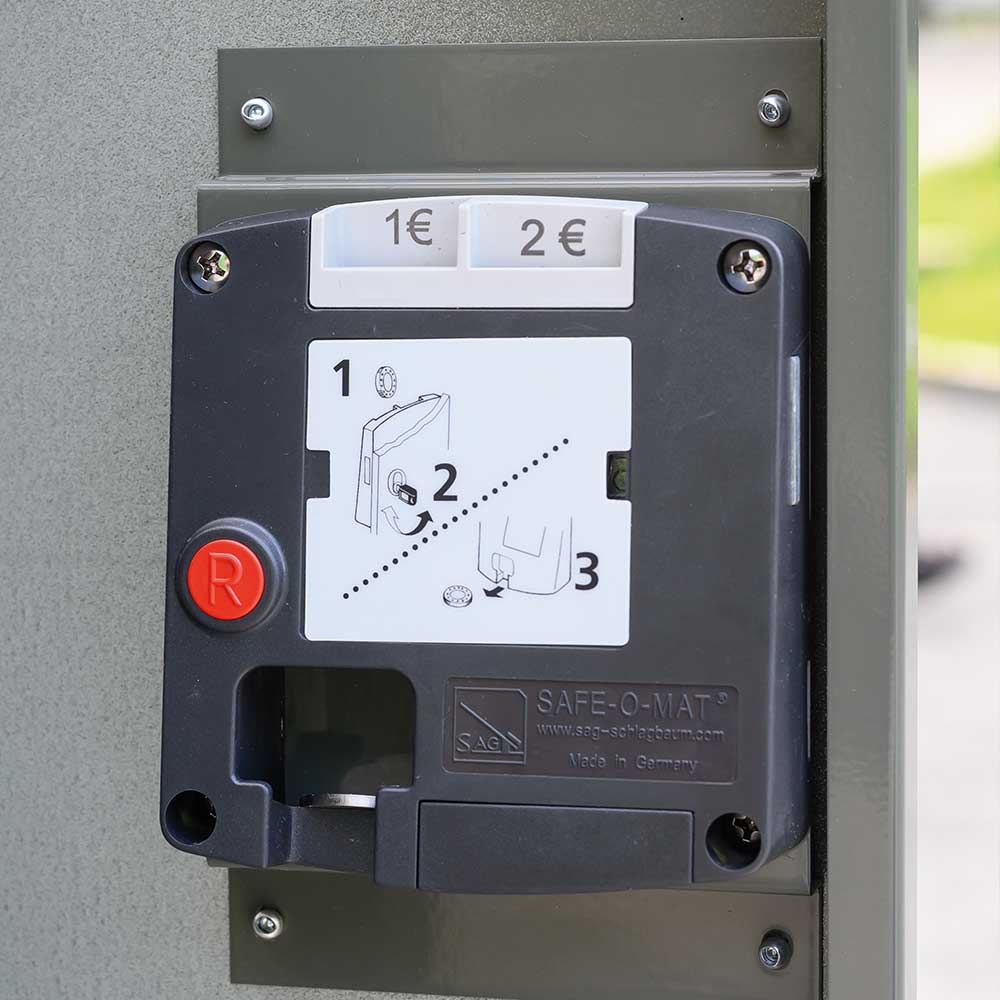

• Choice of three-point lock (pivot lever, profile half-cylinder 10/30, including 2 keys) or single-point coin deposit lock (SAFE-O-MAT including PROMAX cylinder, including 1 key)
• Row locking systems and master key available as accessories
• Coin deposit lock on request
More Details
Tyre Width:
• 70 mm
Installation:
• Bolted to a solid base using the 4 pre-drilled holes (Ø 8 mm) in the floor area
• Includes assembly and base fastening materials
Foundations:
• Recommended: strip foundation at door and rear wall
• When constructing the foundation (single or row installation), allow for a continuous edge of at least 100 mm
Delivery:
• Delivered disassembled in individual cartons
• Detailed assembly instructions included
• Unloading to be provided on-site; a forklift is required for unloading (to be provided by customer or optionally available for an additional charge)
