Fullerton double-tier bicycle locker
Description
Specification
More Details
Downloads
Description
The FULLERTON double-tier bicycle garage range offers a premium solution for secure, convenient and space-efficient bicycle parking. Manufactured in accordance with DIN 79008, this modular system delivers outstanding durability, safety and long-term performance. With folded steel panels and a bicycle rail suitable for tyres up to 60 mm wide, the FULLERTON range provides maximum stability and protection for all types of bicycles.
The FULLERTON system is available with three locking concepts to suit different operating models:
- FULLERTON-PIN with PIN-code access
- FULLERTON-KEY with mechanical or optional electronic locking
- FULLERTON-E with fully electronic access control
All versions can be equipped with optional charging facilities, internal storage, grounded sockets, USB ports and LED interior lighting for maximum user convenience.

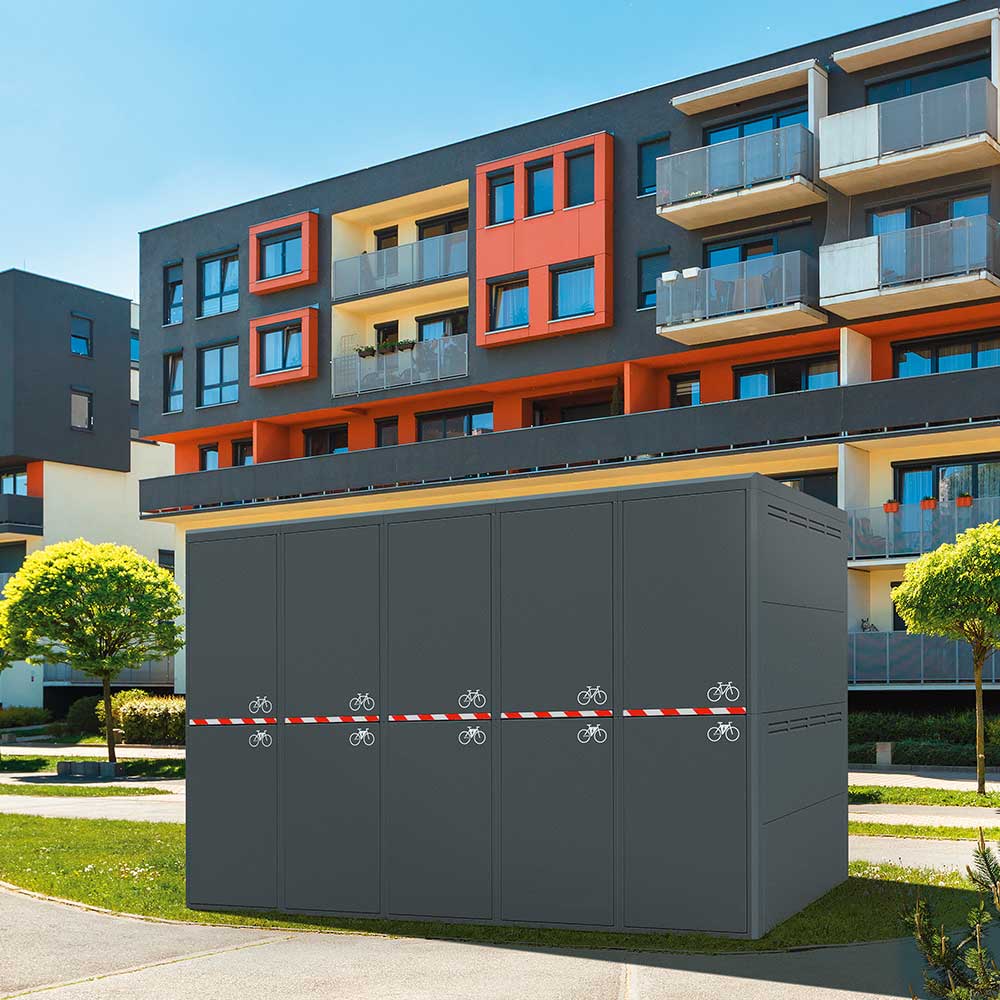

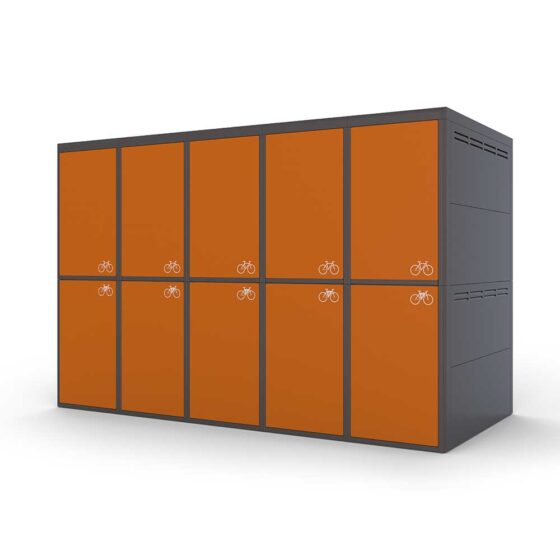

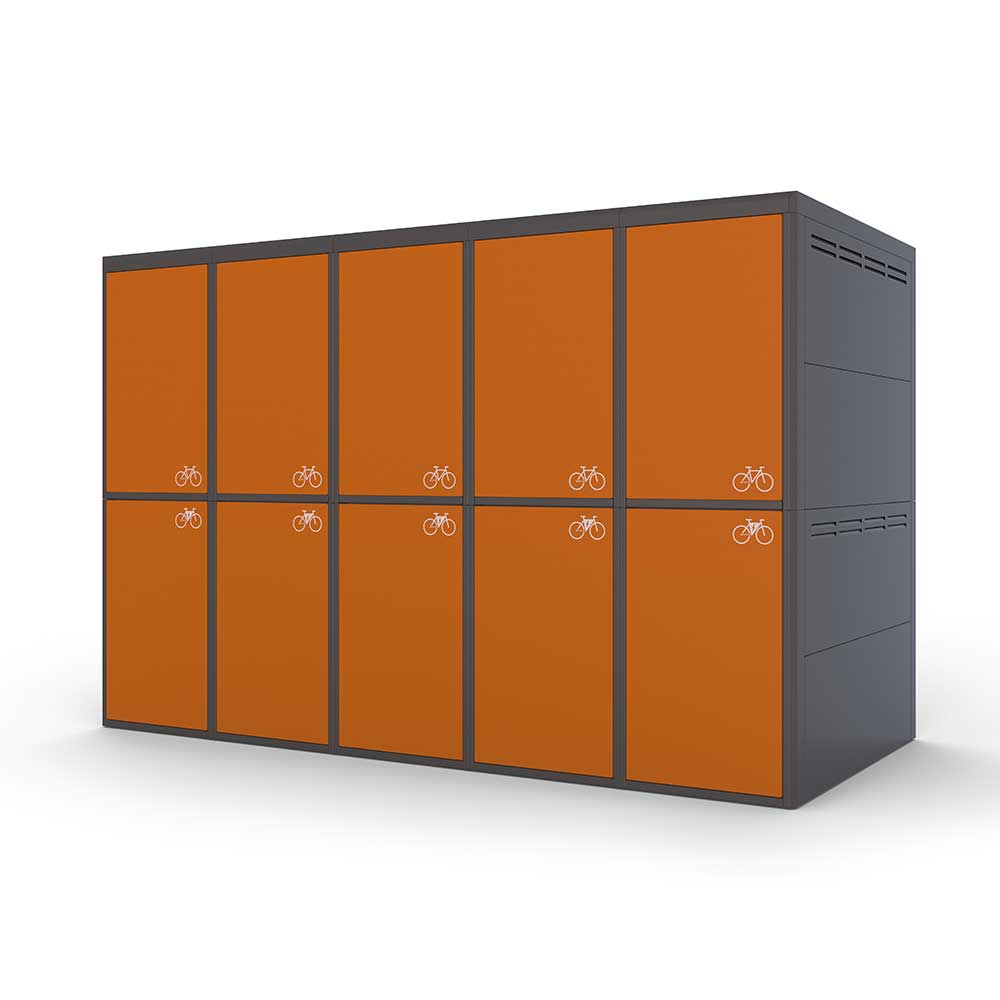

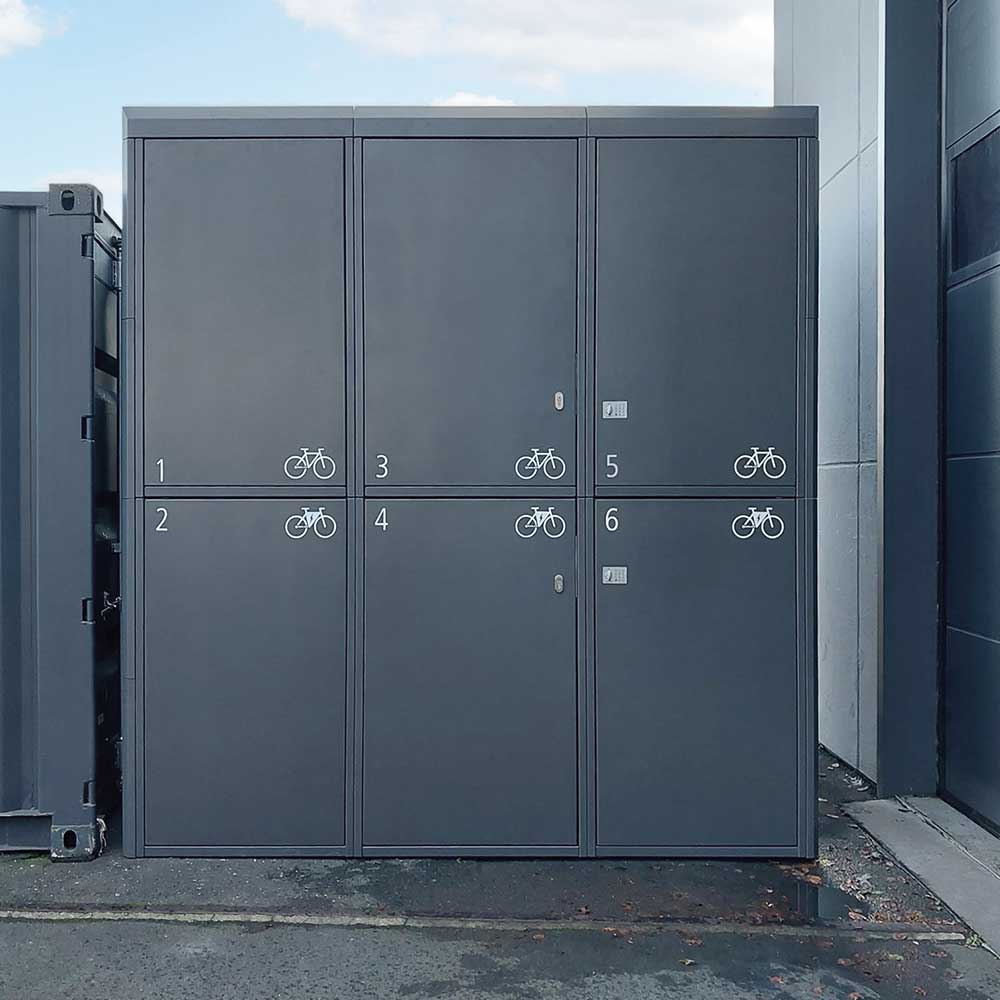

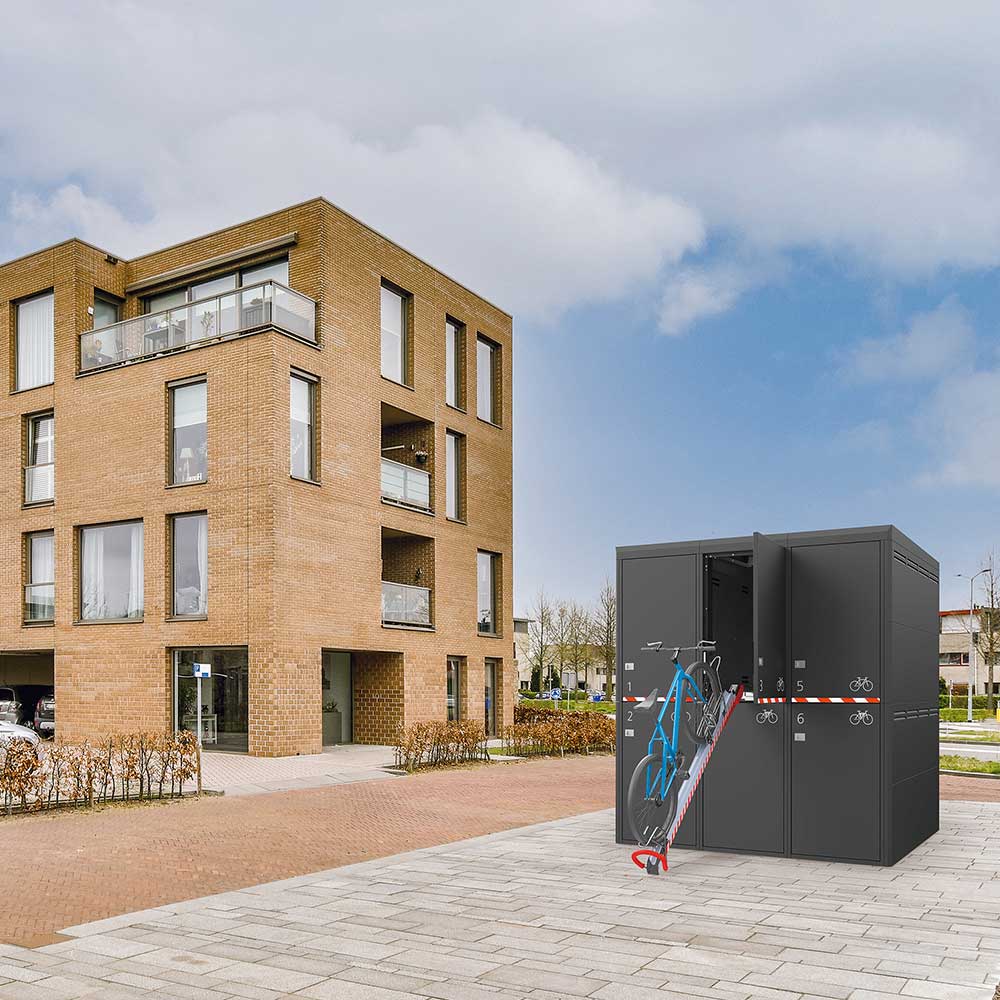

With a wide choice of colours and side wall designs, the FULLERTON garages integrate seamlessly into any environment. The robust flat roof, galvanised wall construction and reinforced, burglar-resistant doors provide excellent protection against weather, vandalism and unauthorised access. The FULLERTON range optimises parking space while creating a secure, well-organised and future-proof bicycle parking facility.
Specification
Construction

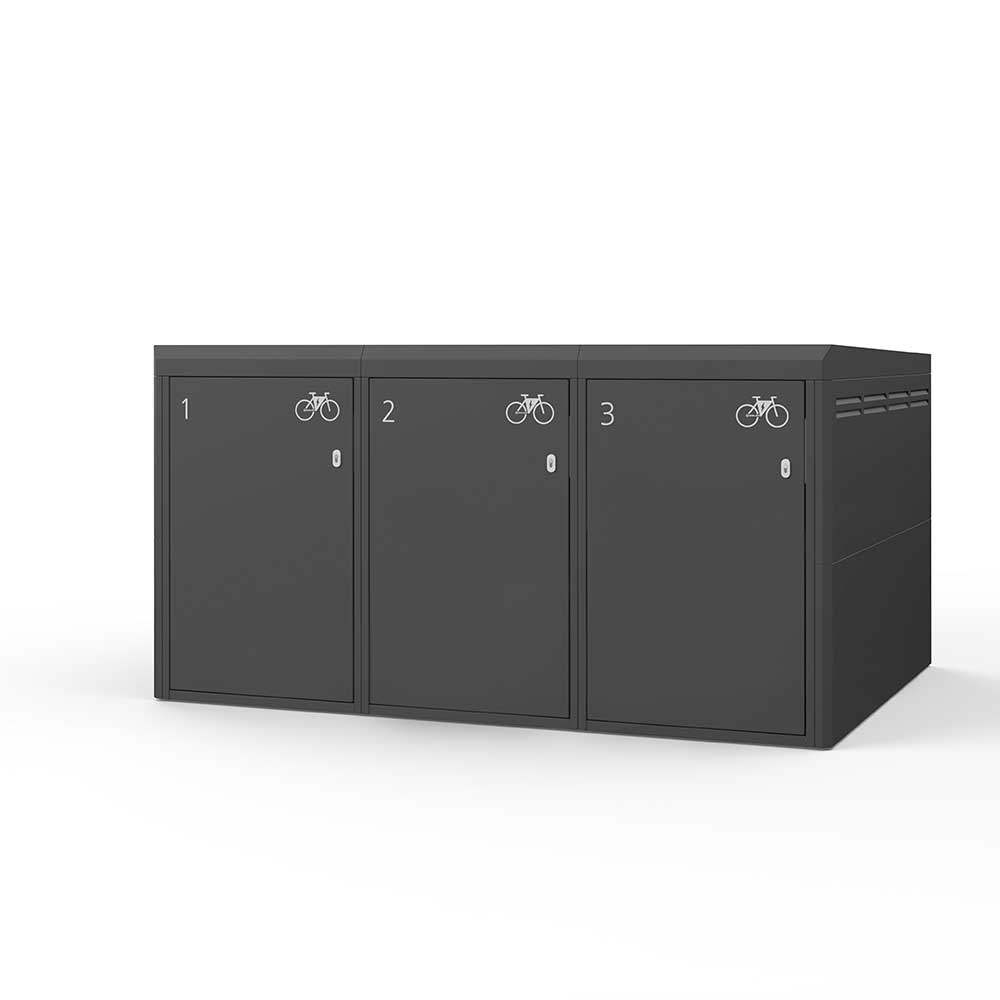

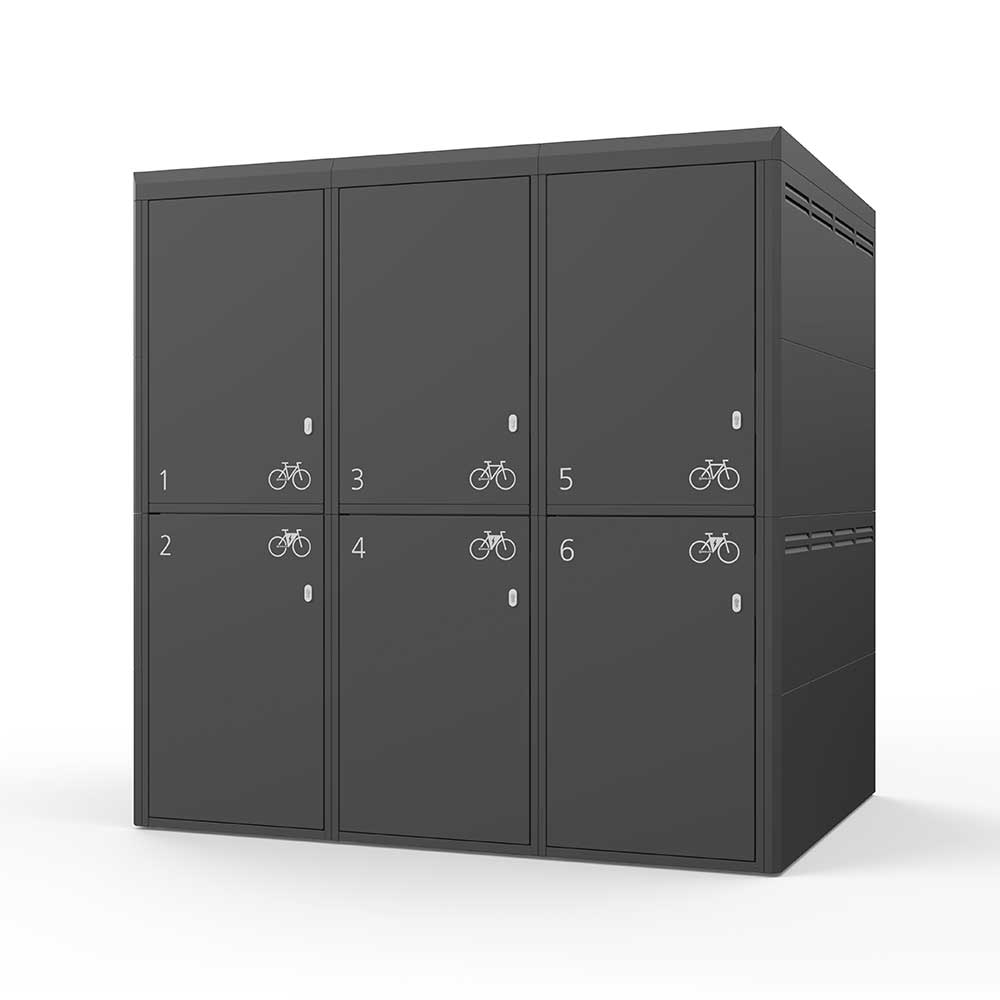

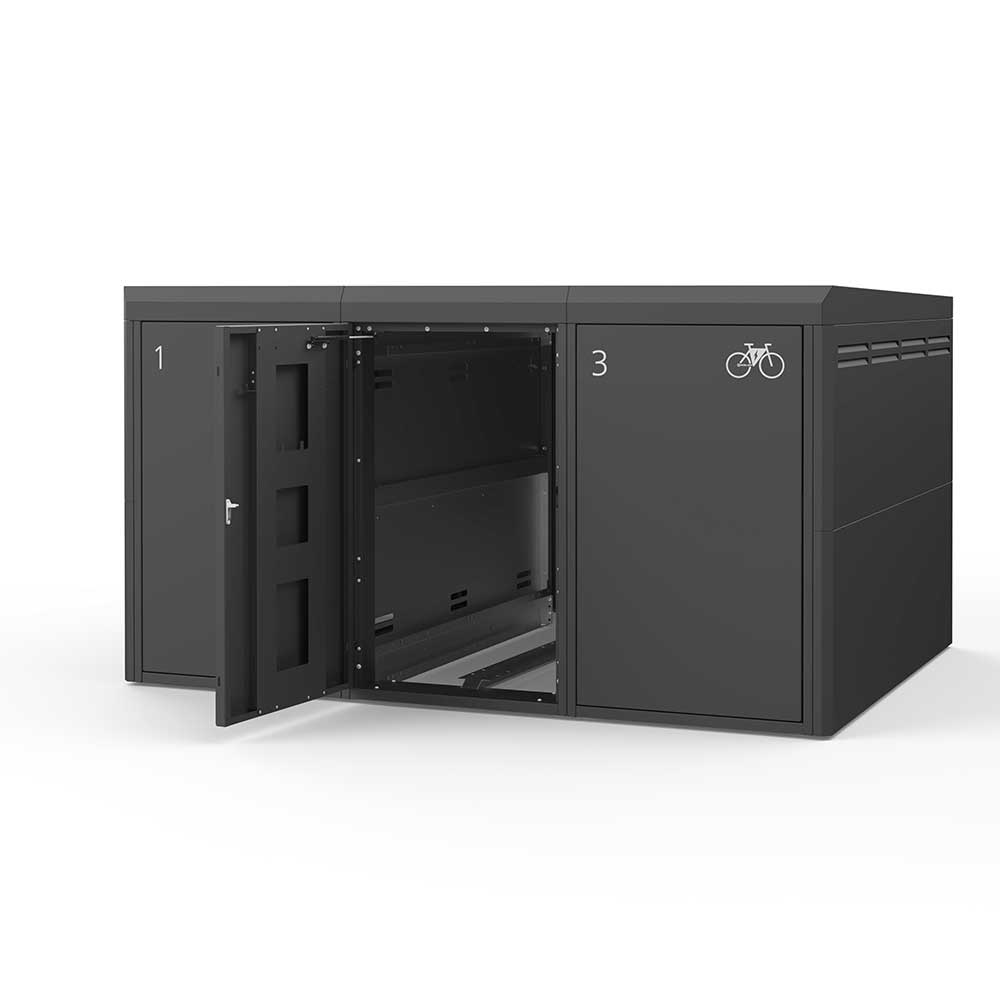

- Modular system available in single- or double-tier configuration, manufactured and certified to DIN 79008
- Folded steel panels, 1.5 mm or 2.0 mm thick
- Bicycle entry rail with front wheel holder for tyres up to 60 mm

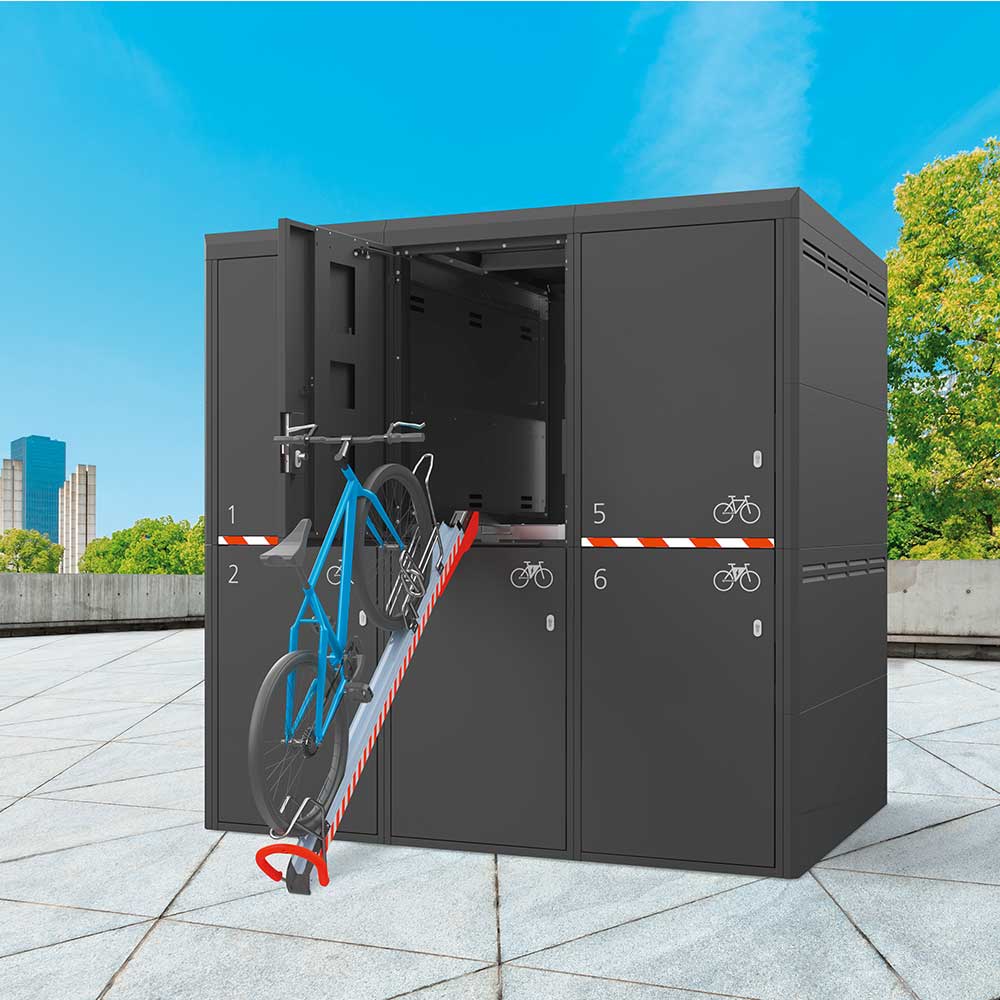

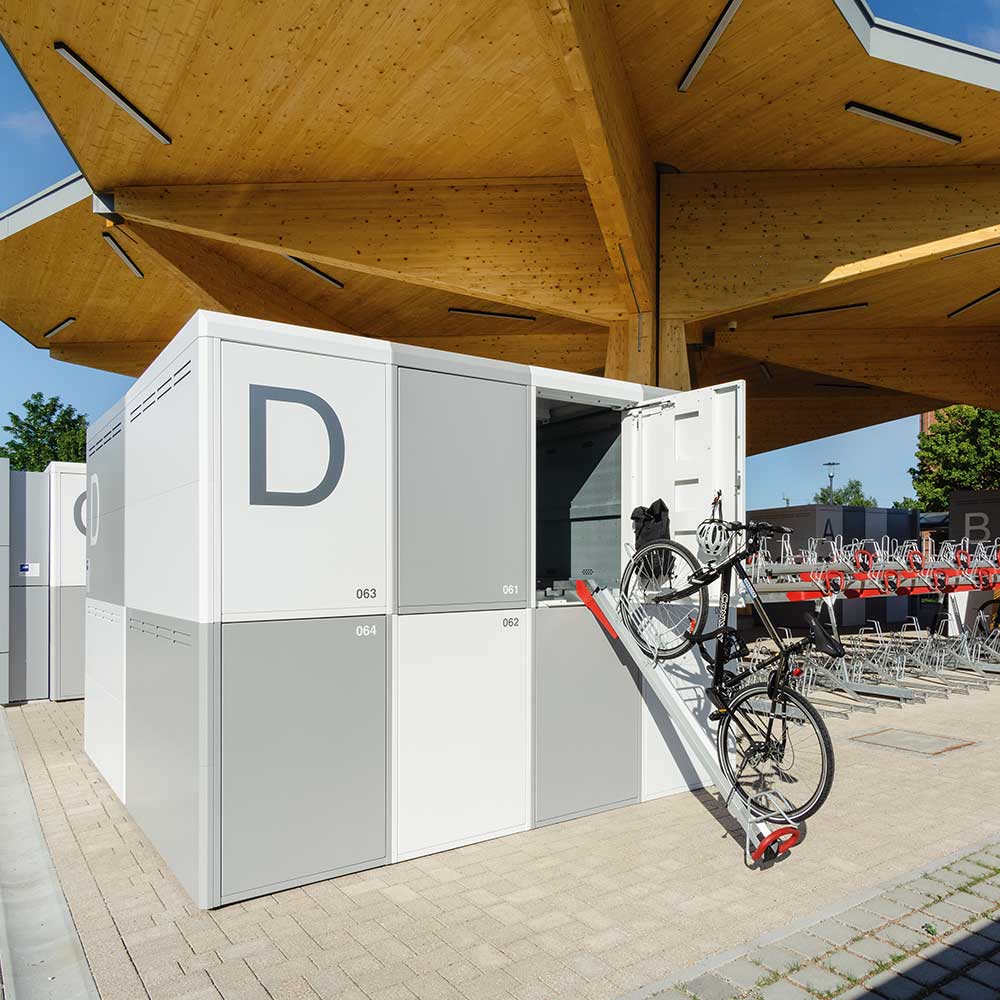

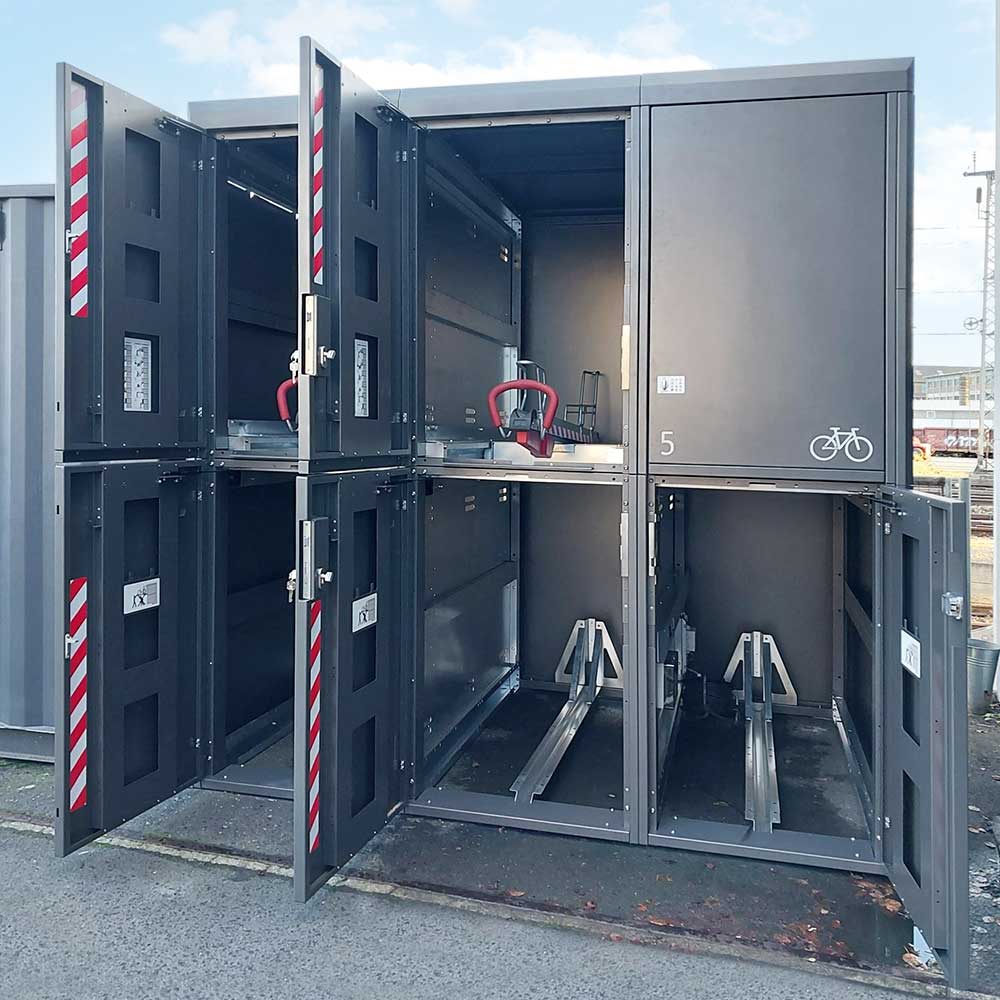

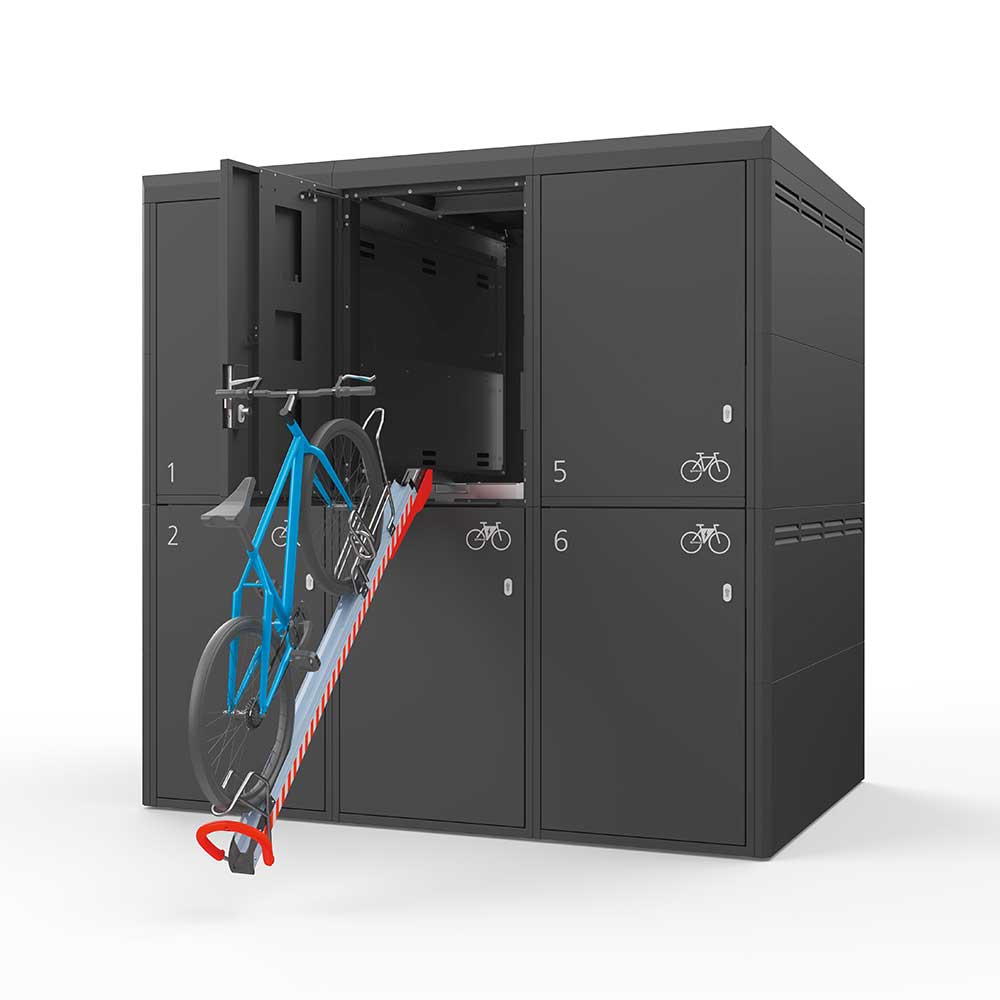

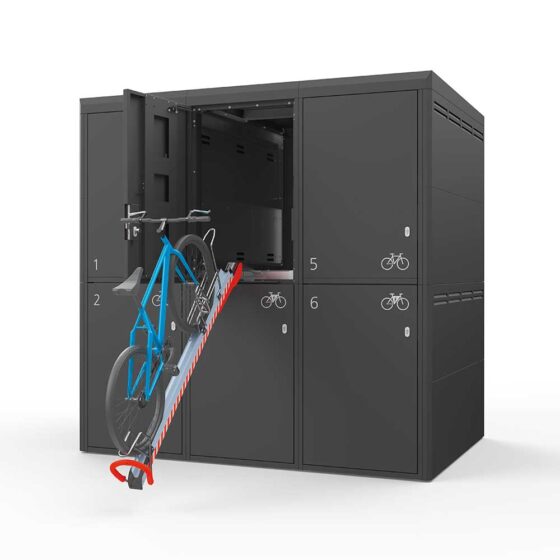

- Double-tier version includes extendable and tilting bicycle rail with backstop, wheel holder and integrated gas spring for easy operation; front wheel adjustment height 330 mm
- Optional charging module in the lower compartment with storage, grounded 230 V socket, USB-A and USB-C ports and LED interior lighting (additional cost)
- Versions for recumbent and cargo bikes available on request
Surface / Colour
• All steel components are hot-dip galvanised and powder-coated in ZIEGLER standard colours
Roof
• Flat roof made from robust 1.5 mm steel with internal reinforcement profiles
• Optional canopy, solar LED exterior lighting (double-tier) and green roof tray available (additional cost)
Rear, Intermediate and Side Walls
• Galvanised, profiled steel panels, 1.5 mm thick, with ventilation slots to reduce condensation and ensure airflow
• Burglar-resistant, fixed internally with screws or rivets
• Optional side wall finishes: perforated sheet, glazed spruce timber cladding, aluminium strips with wood décor, or WPC in standard colours (additional cost)

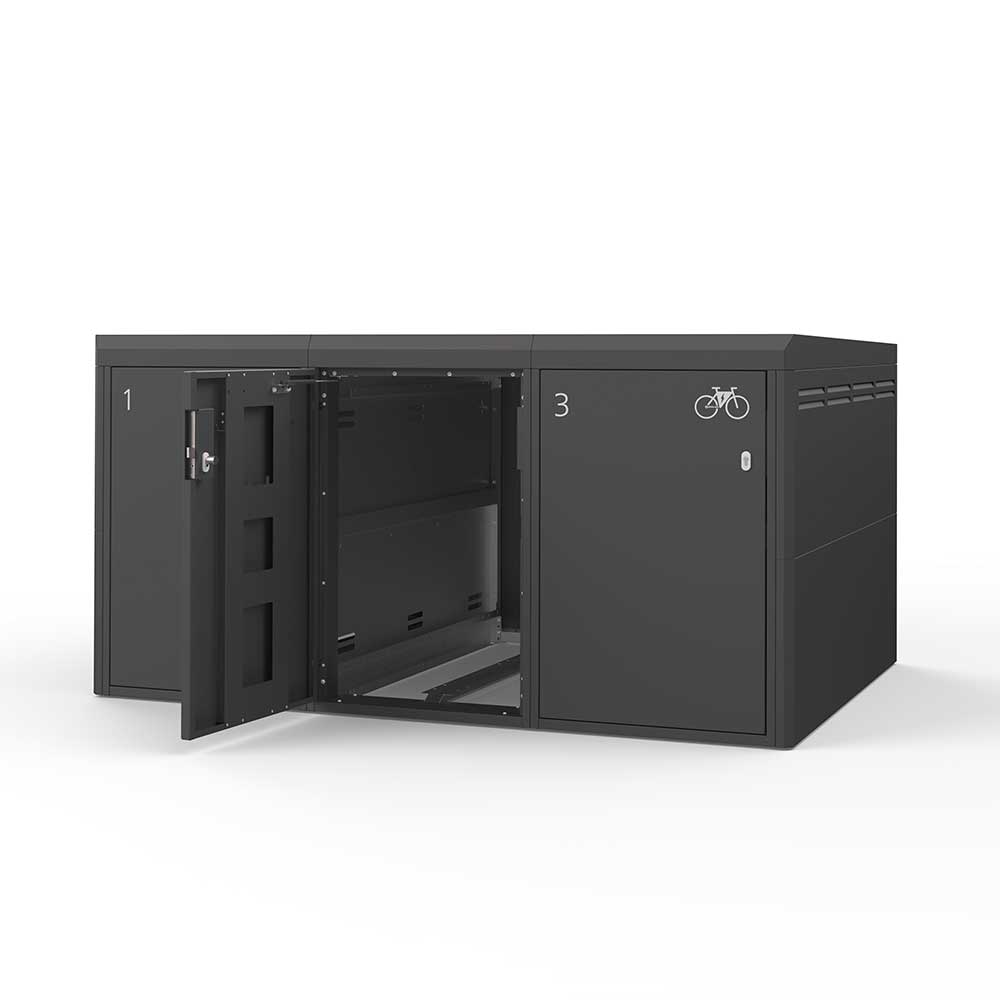

Door
• Reinforced door frame made from 2 mm folded steel with vertical reinforcement bar
• Gas-spring assisted opening
• Coat and helmet hooks on the inside of the doors (double-tier version: lower compartments only)
• Door hinge DIN left or DIN right (please specify when ordering)
• Emergency release from inside and external emergency unlocking depending on locking system
• Labelling and numbering available at extra cost
Locking Options
The FULLERTON range is available with three access systems:
• PIN-code lock for multi-user operation (FULLERTON-PIN)
• Mechanical cylinder lock, with optional PIN-code or electronic access (FULLERTON-KEY)
• Electronic locking system with door sensor, microswitch and compatibility with SmartBikeBox or other access, booking and reservation software (FULLERTON-E)
More Details
Drainage
• Free-draining over the rear roof edge
• Optional gutter and downpipe available (additional cost)
Installation
• Installed on a customer-supplied concrete slab or suitable foundation according to foundation plans
• Adjustable feet for precise levelling
• Floor fixing materials included
Delivery
• Individual compartments pre-assembled at the factory
• Assembly instructions included
• Professional installation available on request
