Ascot Compound

Description

Specifications

Certification

Downloads

Description

The Ascot Compound is an excellent enclosed cycle storage solution. The Ascots modern design style means it will complement any new project.

The Ascot Compound has been designed to accommodate all our Two-Tier Cycle Racks with ample headspace and bike manoeuvrability.

This high quality engineered two tier cycle store, is available in various finishes and with a range of security options, ensuring all bikes are safe and protected.

This bike compound can help contribute towards gaining ENE8 Cycle storage credits when used in the appropriate situation, under the Code for Sustainable Homes.

Specifications

Shelter manufactured from hot dipped steel Galvanised box section to BSEN ISO1461 2mm laser cut galvanised sheet
Several cladding options available
Aluminium fixing straps
All fixings to be BZP steel
Nyloc nuts are used for safety
Anti-climb end panels
No crawl under perimeters
Angled roof with guttering
Various gate options i.e swing, slide or automated, Padlock/Hasp locking mechanism, swipe or keyed
No cycle racks included

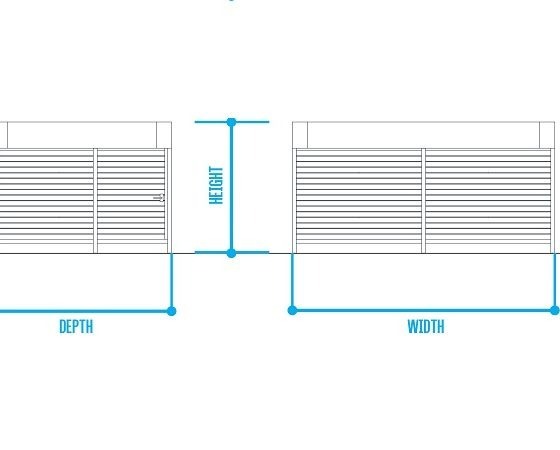

Dimensions:

Example dimensions for 24 Bike Two Tier Compound – H: 2700mm x W: 4980mm x D: 4200mm
Bespoke sizes available. For exact dimensions based on number of cycle spaces. Can be made to fit single tier or two-tier racks.

Shelter Finish Options:
